    TexFrame 16 - frames with textile

    Profile System for making of One-Sided Non-Exposed Frame with tensioned Textile to 1000 mkm thick.

    Frame Depth 16 mm Used for making of Small-Size Frames.

    Textiles are mounted in Frame using PVC Strips or PVC Cord. PVC Strip is sewn (glued) according to the Scheme on the Textile reverse side. PVC Cord is pulled into the Groove with Special Roller from the Textile front sid.

    Special Docking Plate is used to build the Profile lengthwise.

    Component parts:

    TexFrame 16 - frames with textile
    TF BA016/1SM

    TF BA016/1SM

    Profile Basic Textile 16 mm one-sided, anode, matt silver, 6.1 m, 1.85 kg

    Furniture:

    AC FC013

    AC FC013

    AC TP015

    AC TP015

    AC RO111

    AC RO111

    AC CD005

    AC CD005

    AC AP010

    AC AP010

    AC PL100

    AC PL100

    Base, metal

    Decorative cover for base

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC FC013 AC AP010 FC LP038 AC CD005 or AC TP015
    TF BA016/1SM 4 - - Perimeter
    TF BA022/1SM 4 4 min 2 Perimeter
    TF BA045/2SM 8 4 - Perimeter х2

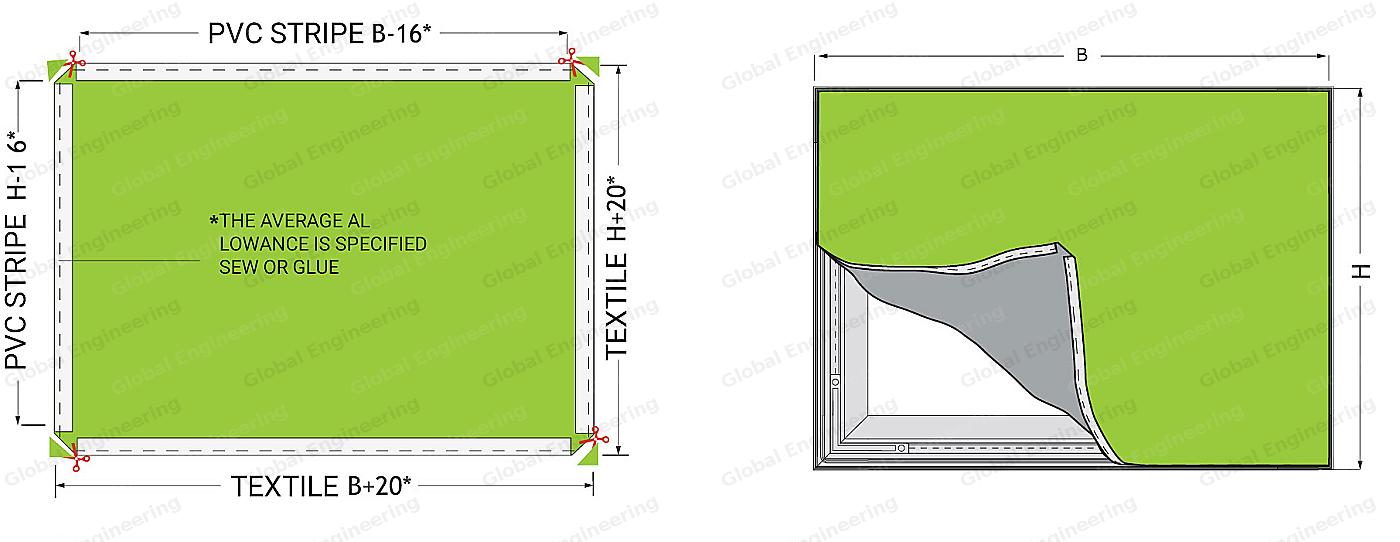

    Scheme of canvas cutting:

    Scheme of canvas cutting for TexFrame 16
