    BannerWall - Frames with Banner

    Profile System is used for making of Non-Exposed Frame with tensioned Banner on flat surfaces.
    Used in advertising for making of Large Non-Illuminated Structures to be mounted on Buildings or Advertising Boards. And also, in the transport sector for quick-change advertising on the Board Sides of Trucks, Vans and Trailers.

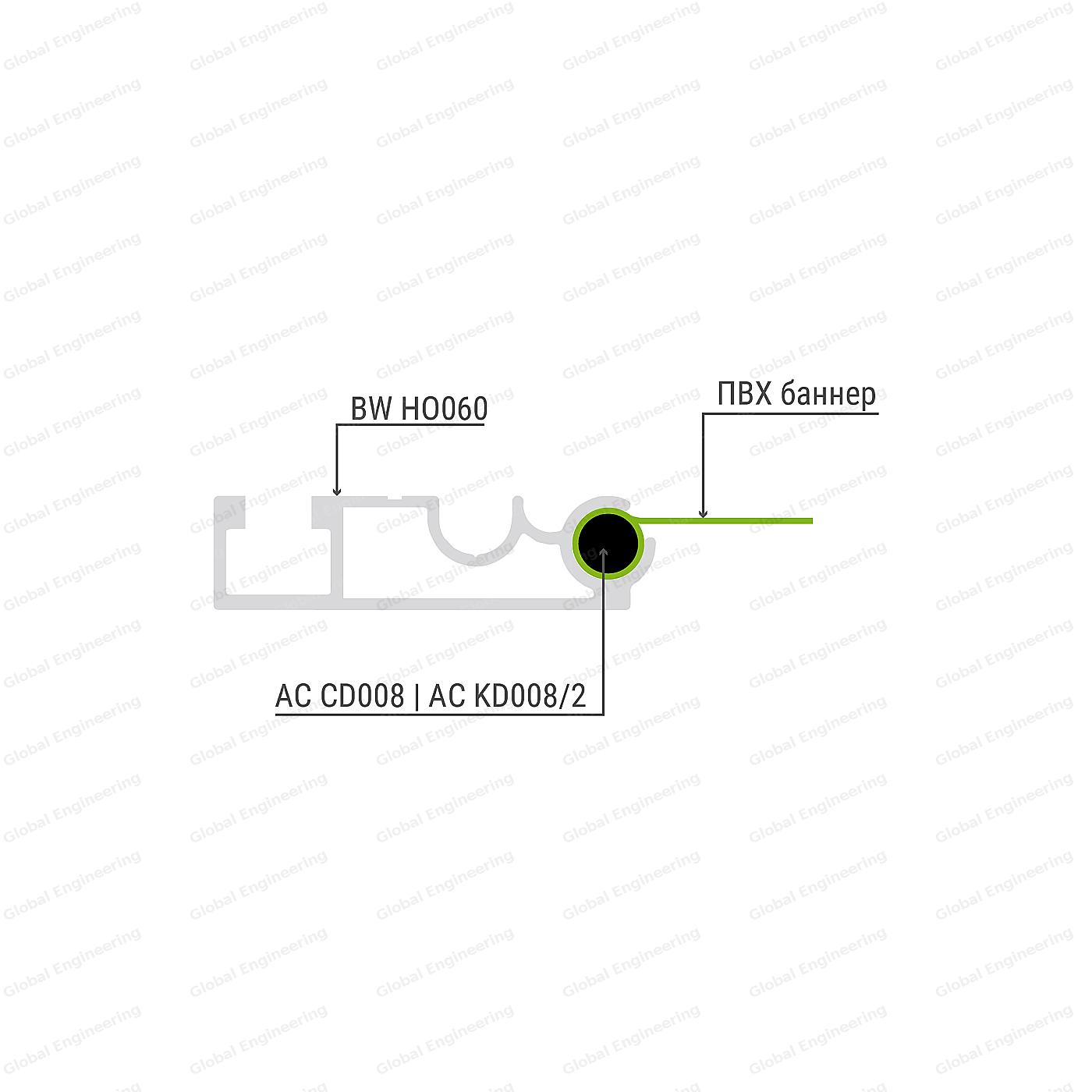

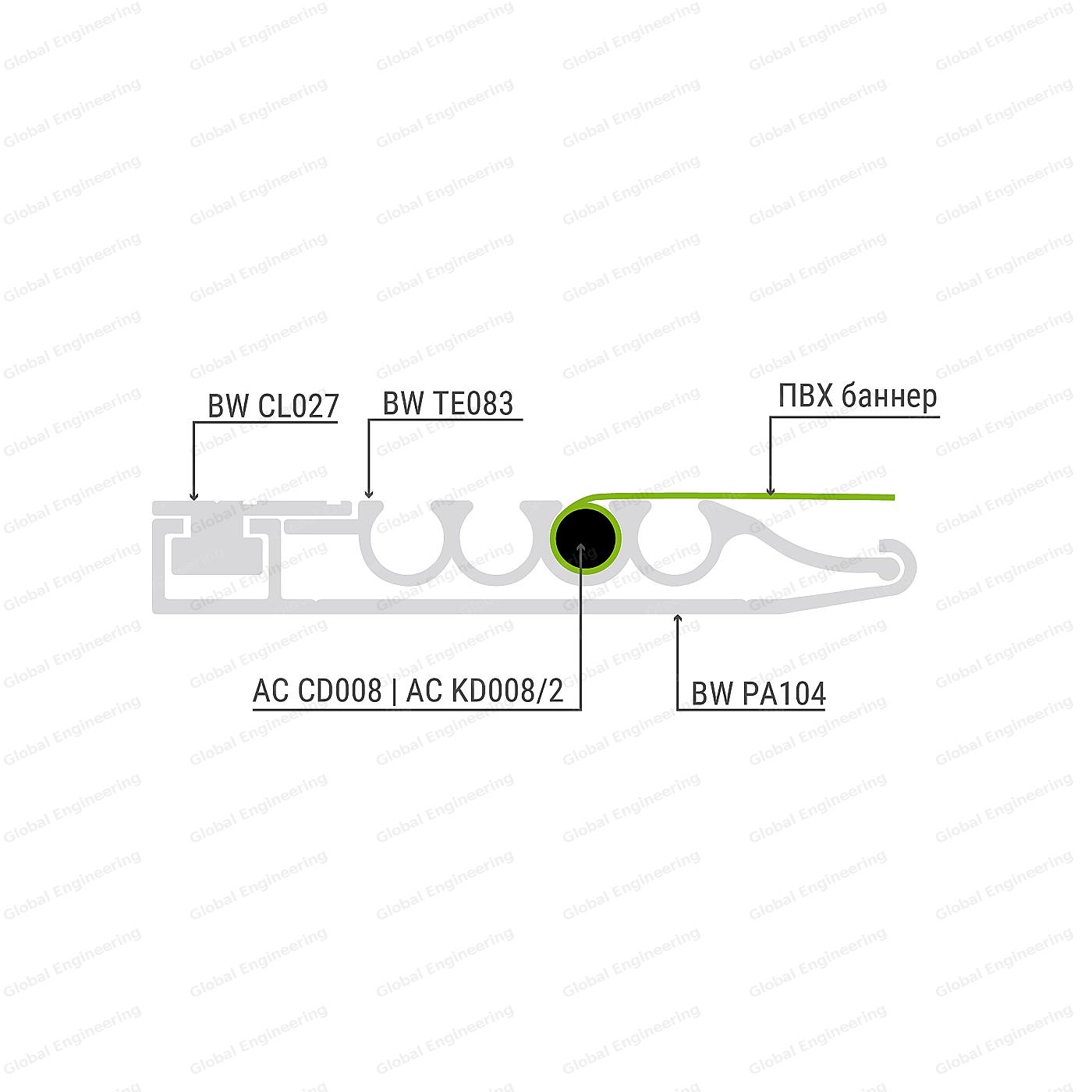

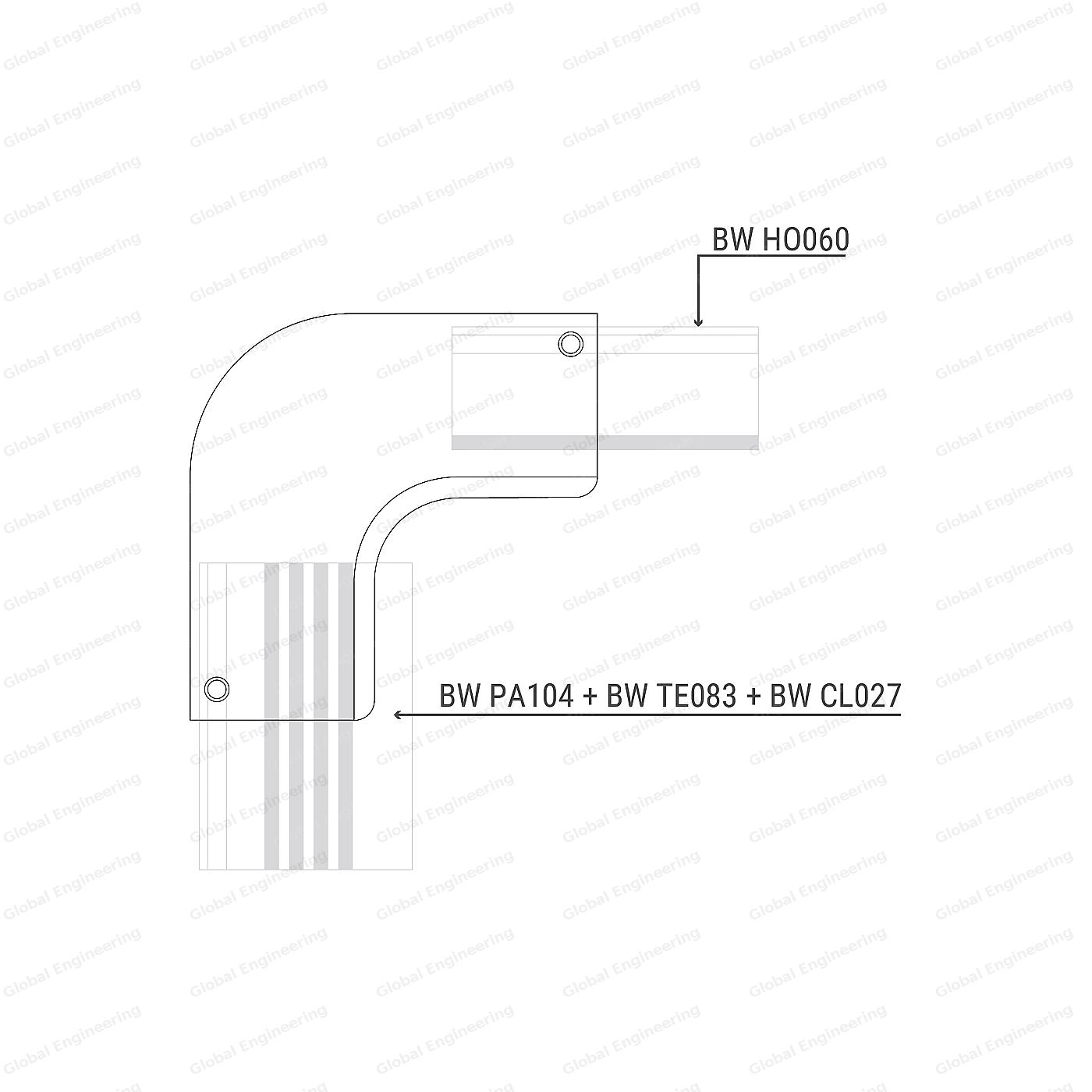

    The Frame upper part is made of the Holder Profile, the other three sides of the Tensioner Profile, Stop and Retainer each. Frame Angles are covered with ABS Plastic Pads.
    Ad uses Cast Banner with Ceder or lightweight Banner with Cord. For transport is used only Cast Banner with density not
    more than 500 g/m2 with Cedar.

    Component parts:

    BW HO060/1SM

    Profile Holder Banner 60 mm, anode, matt silver, 6.1 m, 4.04 kg

    BW HO060/1SM

    BW TE083/1SM

    Profile Tensioner Banner 83 mm, anode, 6.1 m

    BW TE083/1SM

    BW PA104/1SM

    Profile Rest Banner 104 mm, anode, matt silver, 6.1 m, 4.29 kg

    BW PA104/1SM

    BW CL027/1SM

    Profile Retainer Banner 27 mm, anode, matt silver, 6.1 m, 2.21 kg

    BW CL027/1SM

    Furniture:

    AC CR100/G

    AC CR100/G

    AC CR200/G

    AC CR200/G

    AC NU008

    AC NU008

    AC WA008

    AC WA008

    AC KD008/2

    AC KD008/2

    AC CD008

    AC CD008

    АС 30815

    АС 30815

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC CR100/G or AC CR200/G AC BO815 AC NU008 AC WA008 AC KD008/2 or AC CD008
    BW HO060/1SM 4 8 8 8 Perimeter
    BW TE083/1SM + BW PA104/1SM + BW CL027/1SM

    Scheme of canvas cutting:

    Scheme of canvas cutting for BannerWall

    Use:
