    MagneticBox 52 - box with acrylic and magnetic connector

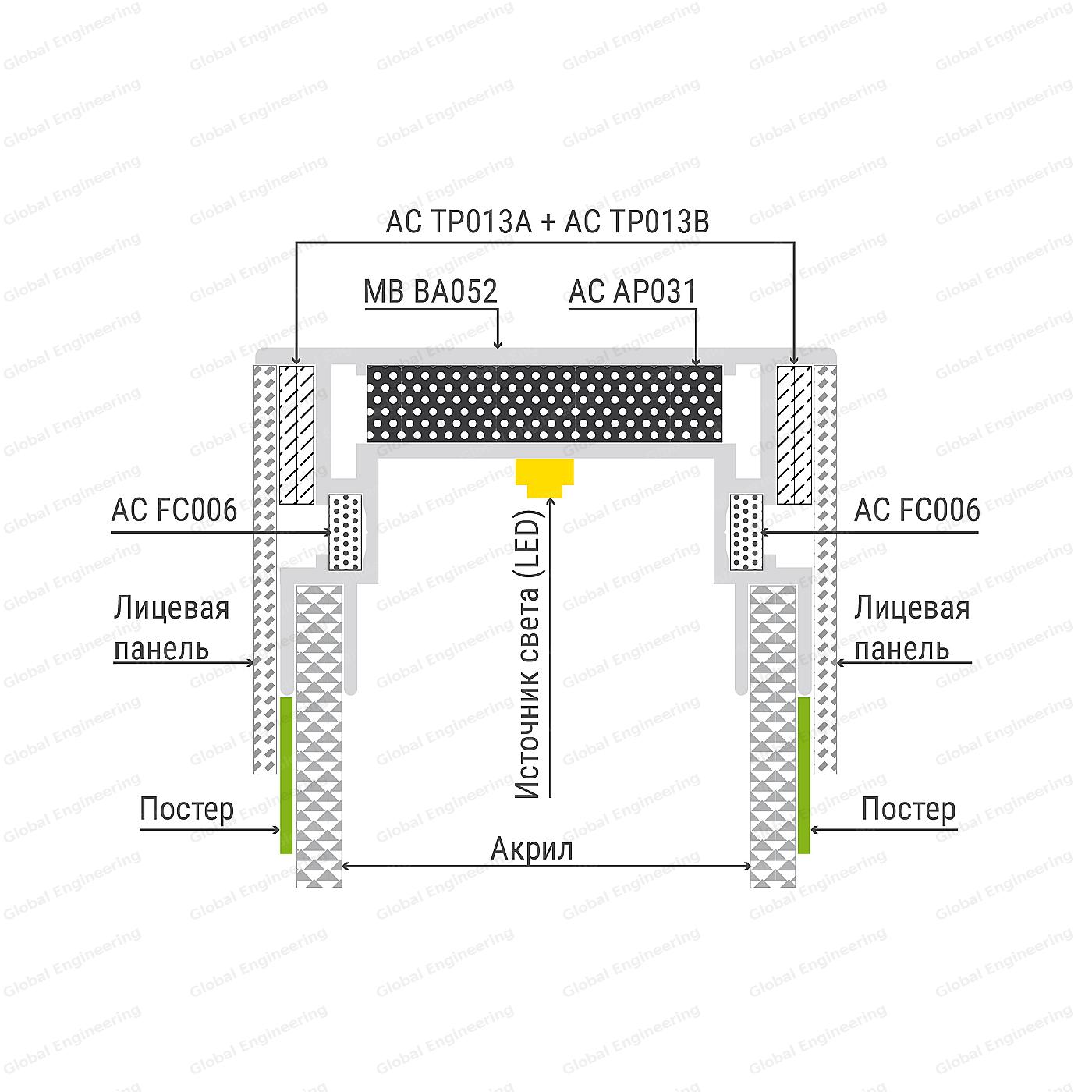

    Profile System for making of 52 mm deep One / Two-Sided Light Box with Front Panel Magnetic Connector.
    3-4 mm thick Milky Acryl is used as dffuser in the Box. Box is illuminated all-around with LED Tape.
    As the front panel is used 5-2 mm thick Transparent Plastic, which is fastened to the Panel with Magnetic Tapes (type A + type B) with TESA glue.
    Magnetic Tapes are closed all-around the front panel with “Rimming Strip”, the recommended width is 30 mm. “Rimming Strip” can be painted or made from Vinyl Film.
    To change Advertising Poster, the Front Panel is removed using Special Vacuum Cups, which ensures the anti-vandal design.
    Base is used to mount the Box on the Floor.

    Component parts:

    MagneticBox 52 - box with acrylic and magnetic connector

    MB BA052/2SM

    Profile Basic Box Magnet 52 mm two-sided, anode, matt silver, 6.1 m, 4.49 kg

    MB BA052/2SM

    Furniture:

    AC FC006

    AC FC006

    AC AP031

    AC AP031

    AC SC610

    AC SC610

    AC TP013A/TS

    AC TP013A/TS

    AC TP013B/TS

    AC TP013B/TS

    AC SU040

    AC SU040

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC FC006 AC AP031 AC SC610 AC TP013A/TS + AC TP013B/TS AC SU040
    MA BA052/2SM 8 4 8 Perimeter x2 1
