    design | prototyping | production | sale

    PosterElips Suspension - poster mounting

    27 mm wide Profile System for hanging of Posters made from Banner, Textile or Paper.
    Insert Thickness at most 500 microns

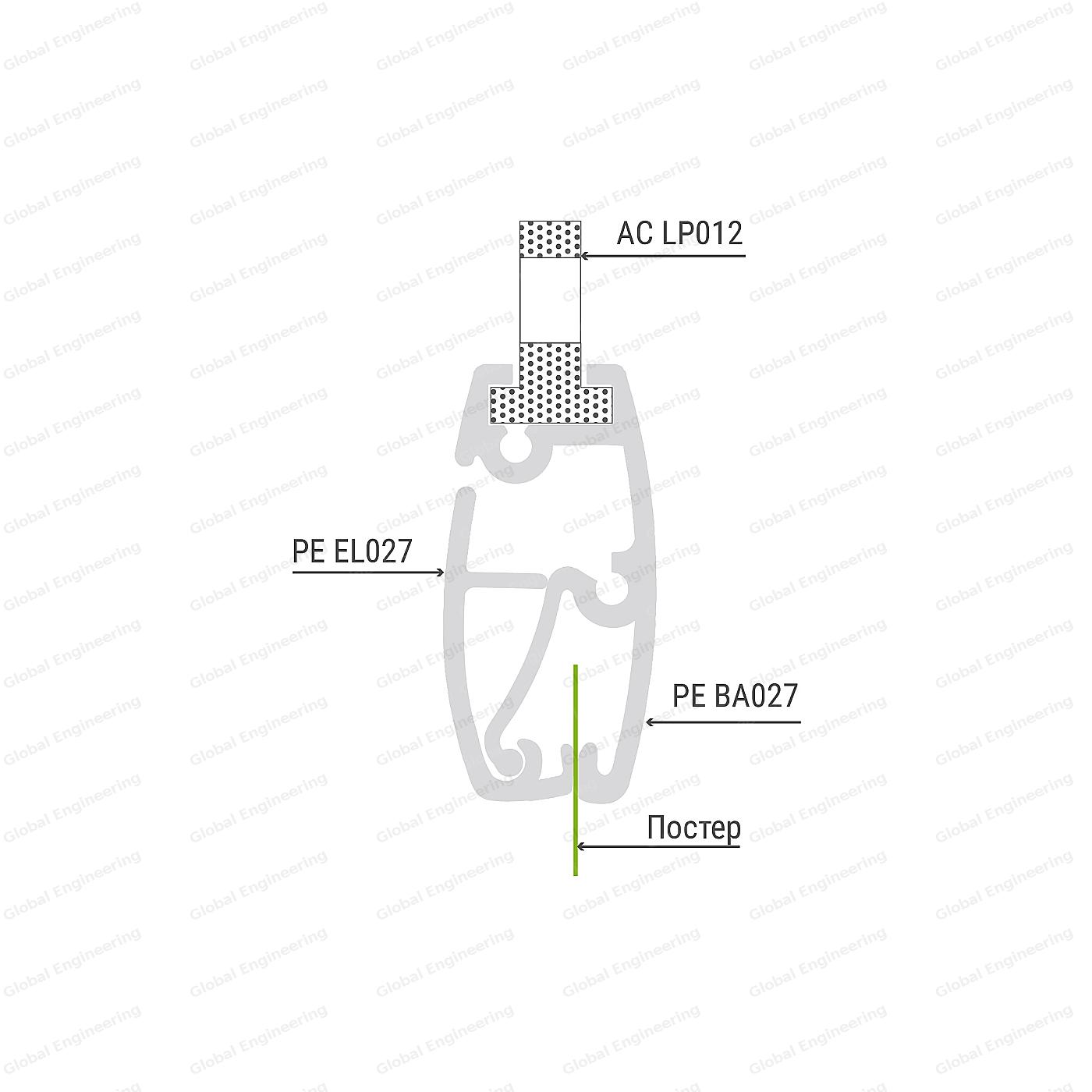

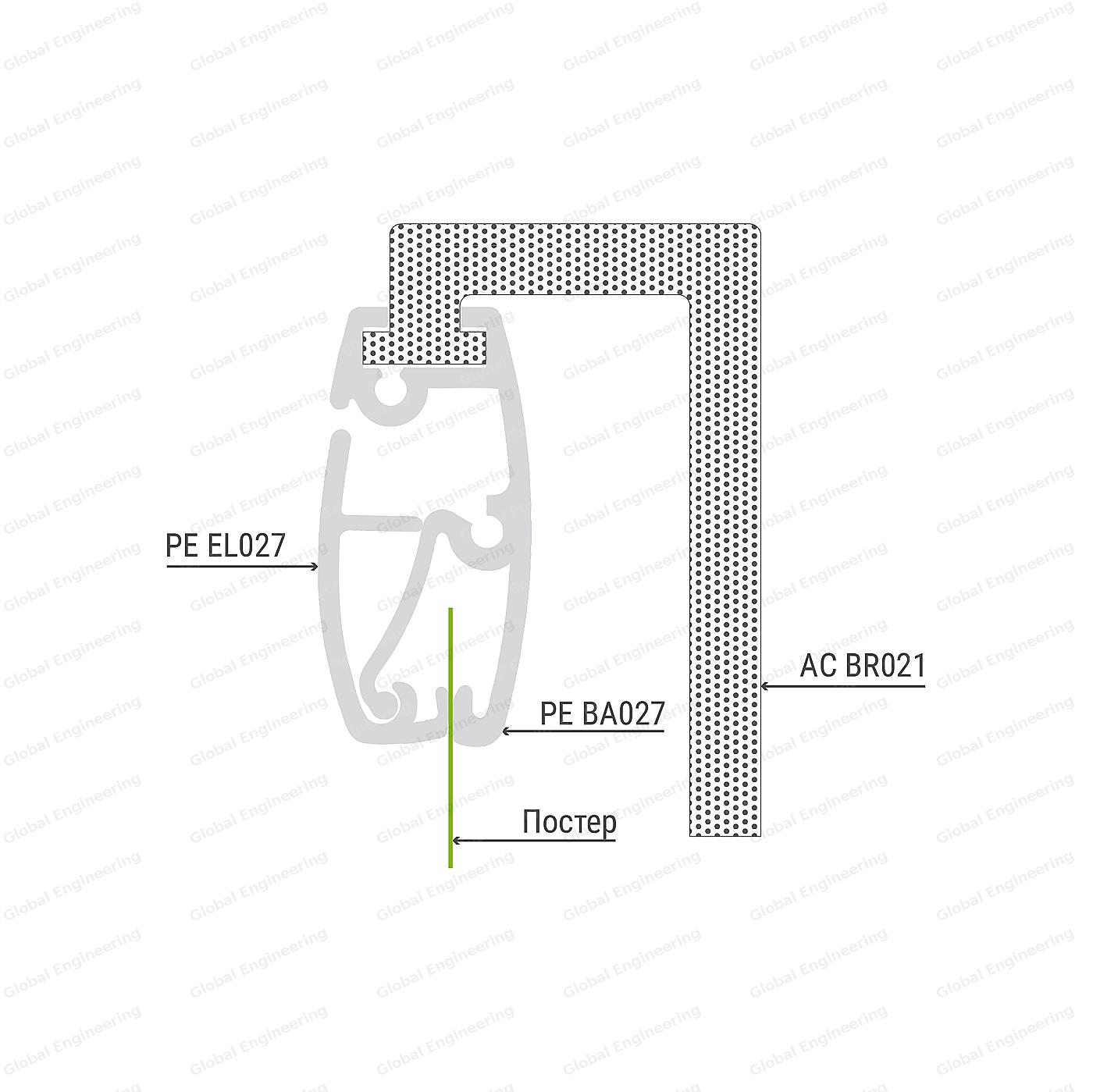

    Poster can be hung from the Ceiling to the Hinges or mounted on the Wall by Angular Brackets
    Profile is attached to the Poster from 2 sides: up and down. Fasteners (Hinges or Brackets) are inserted into the Structure upper part.
    The Structure lower part is Weighting Agent, due to which the Poster is aligned.

    Component parts:

    PosterElips Suspension PosterElips Suspension

    PE EL027/2SM

    Cover Poster 27 mm anode 6.1 m

    PE EL027/2SM

    PE BA027/2SM

    Basic Poster 27 mm anode 6.1 m

    PE BA027/2SM

    Furniture:

    AC CP027/B

    AC CP027/B

    AC SC210PH

    AC SC210PH

    AC LP012

    AC LP012

    AC BR021

    AC BR021

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC CP027 AC SC210PH AC LP012 or AC BR021
    PE BA027/2SM + CF BA026/1MF 4 8 min 2

    Use:
