Profile System for making of One / Two-Sided Light Box with Split Side
Box Depth 150 mm

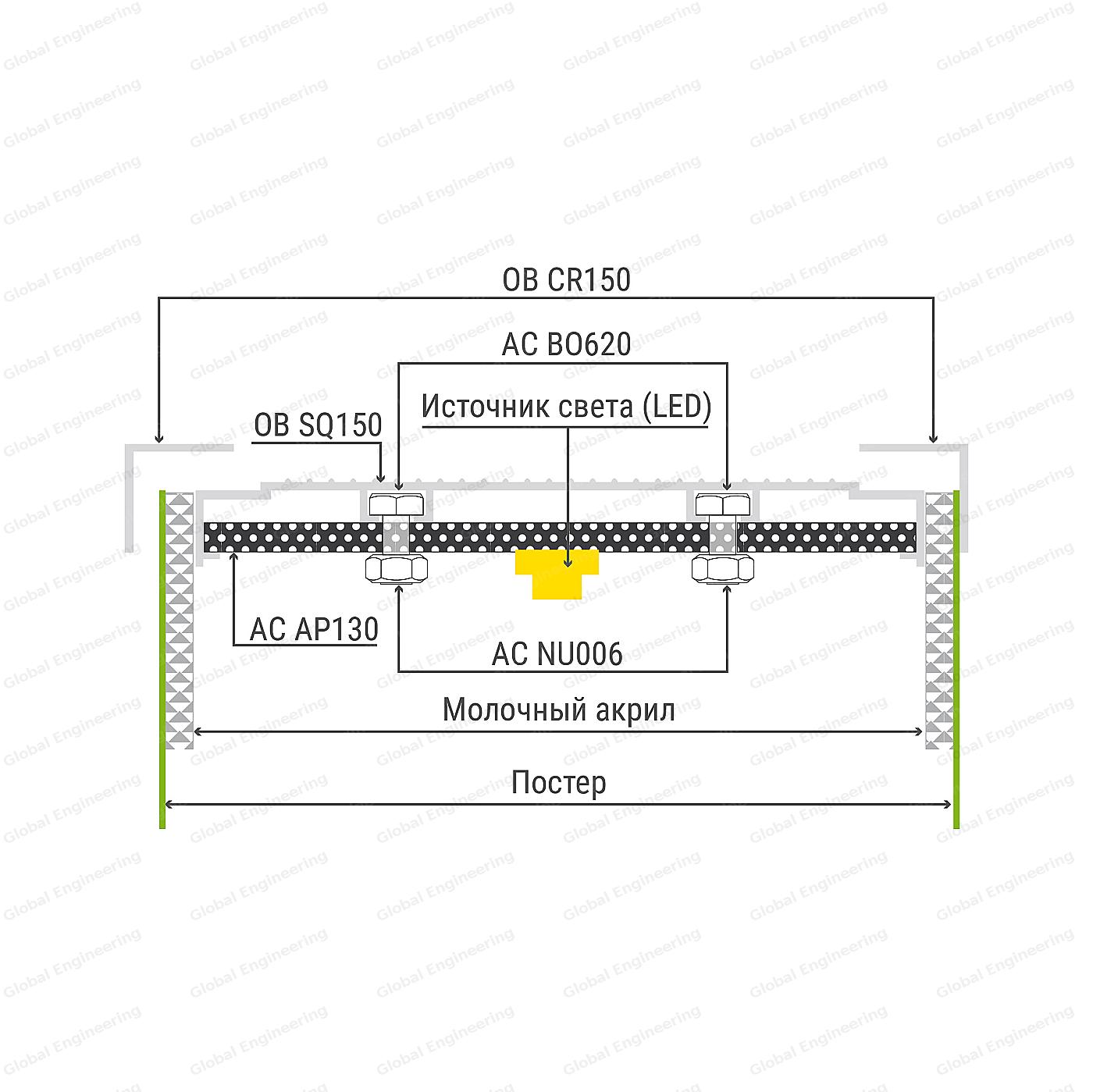

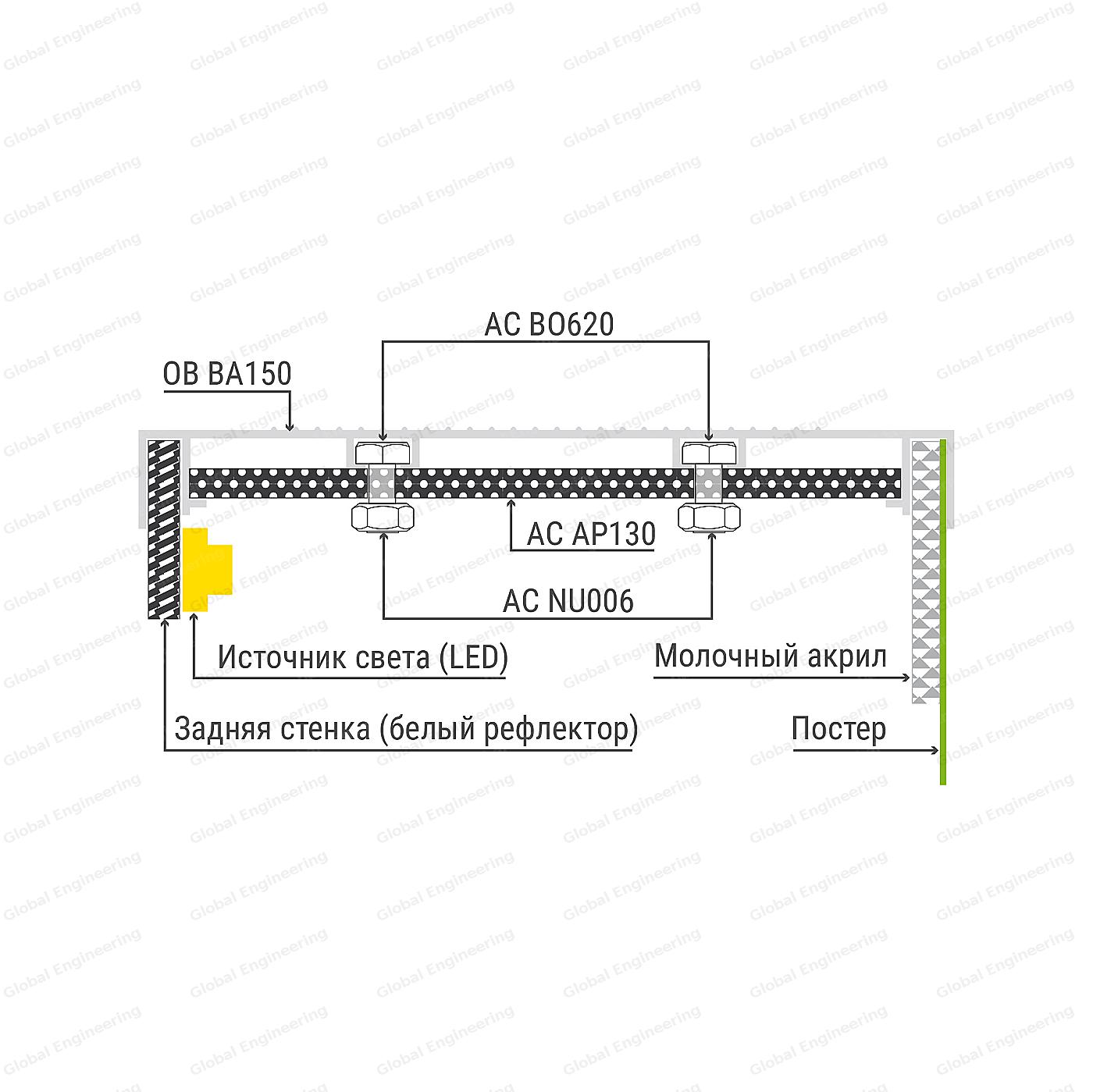

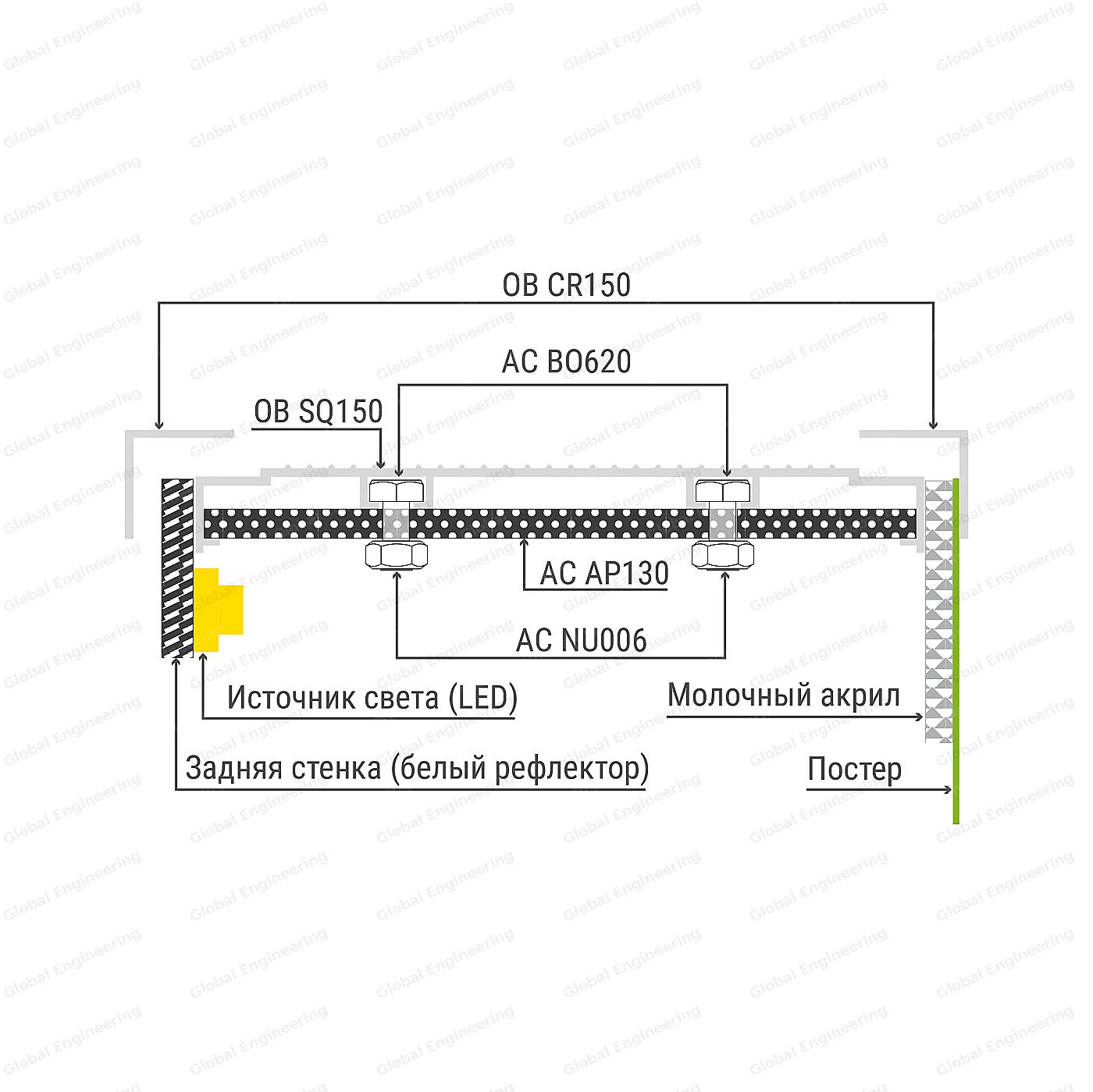

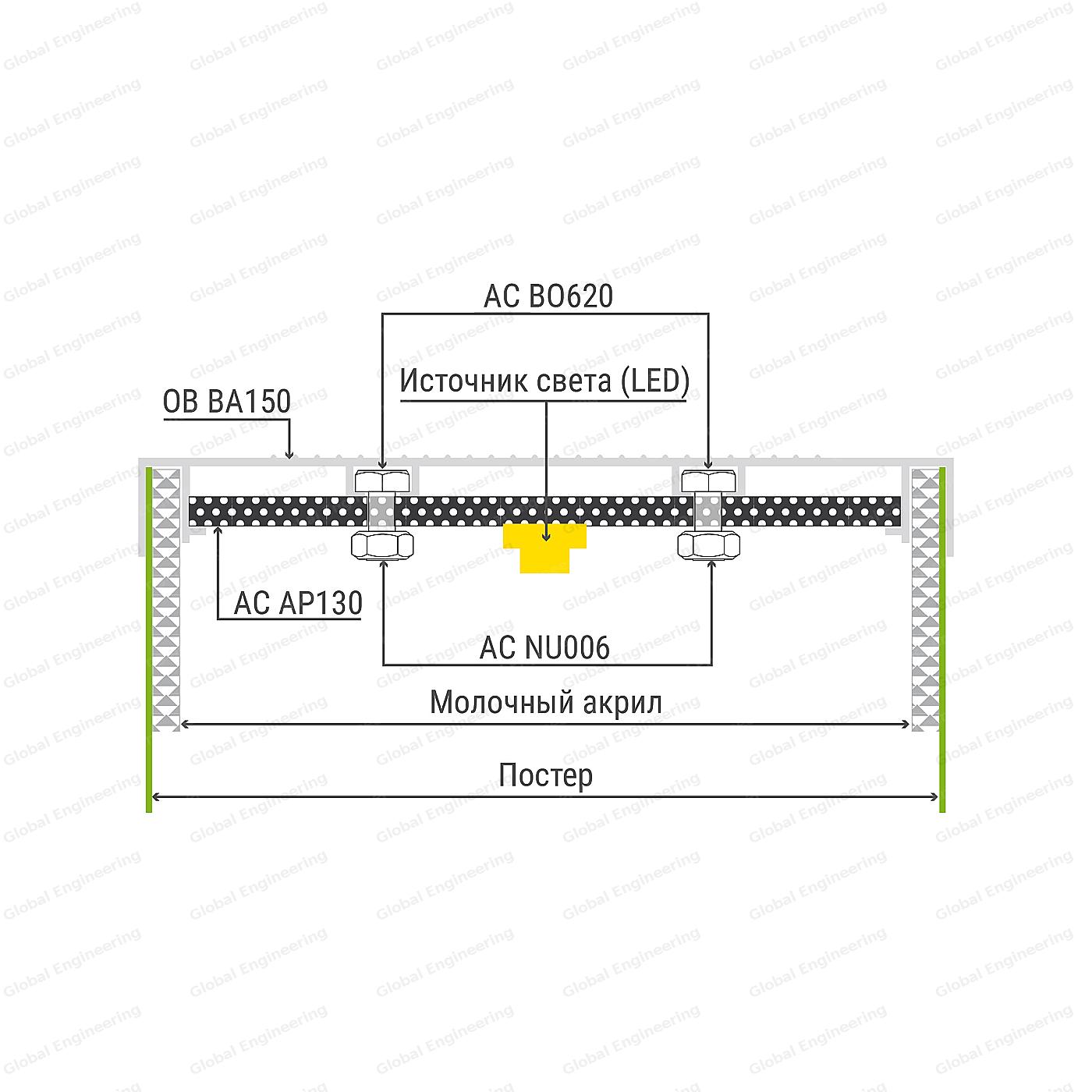

Box`s three sides are made of Basic Profile, the fourth side is made of Split Profile with Covers.
Milky Acryl is used as dffuser in the Box.
Box is illuminated all-around with LED Tape. One-Sided box may be also illuminated on the rear wall with LED modules or Tapes.
Special Profile Bracket is used to mount one-sided Box to the Wall.
Profile Basic Box, two-sided, anode, unpainted, 6,1 m, 6,49 kg
Profile Split Box 150 mm two-sided, anode, unpainted, 6.1 m, 5.32 kg
Profile is used to mount Advertising Structures.

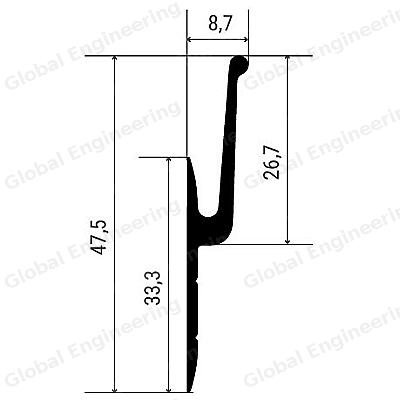

Profile Bracket for Box Suspension, unpainted 6.1 m, 1.8 kg
| Profile | Name and quantity of components | ||
|---|---|---|---|
| AC AP130 | AC BO620 | AC NU006 | |
| OB BA150/2MF | 4 | 16 | 16 |
| OB SQ150/2MF + OB CR150/2MF | |||
