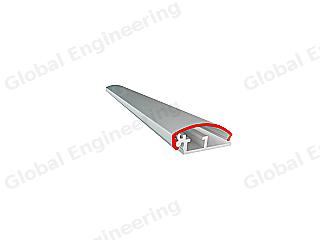

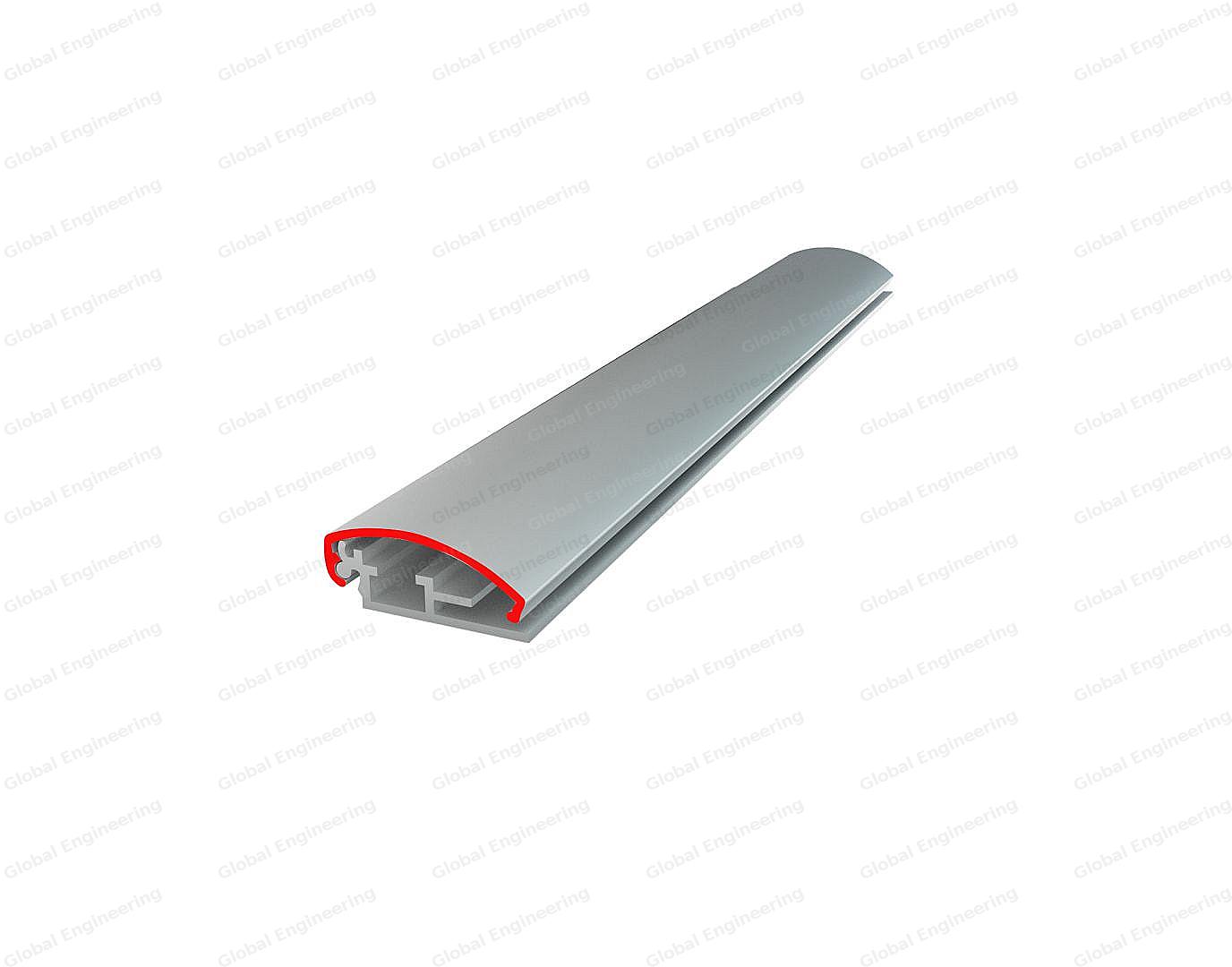

    ClicFrame 25 - frames with snap profile

    Profile System for making of One-Sided Non-Exposed Click Frame for frequent and rapid change of information.

    25 mm wide Covering Profile has rounded (SL) cross-section.

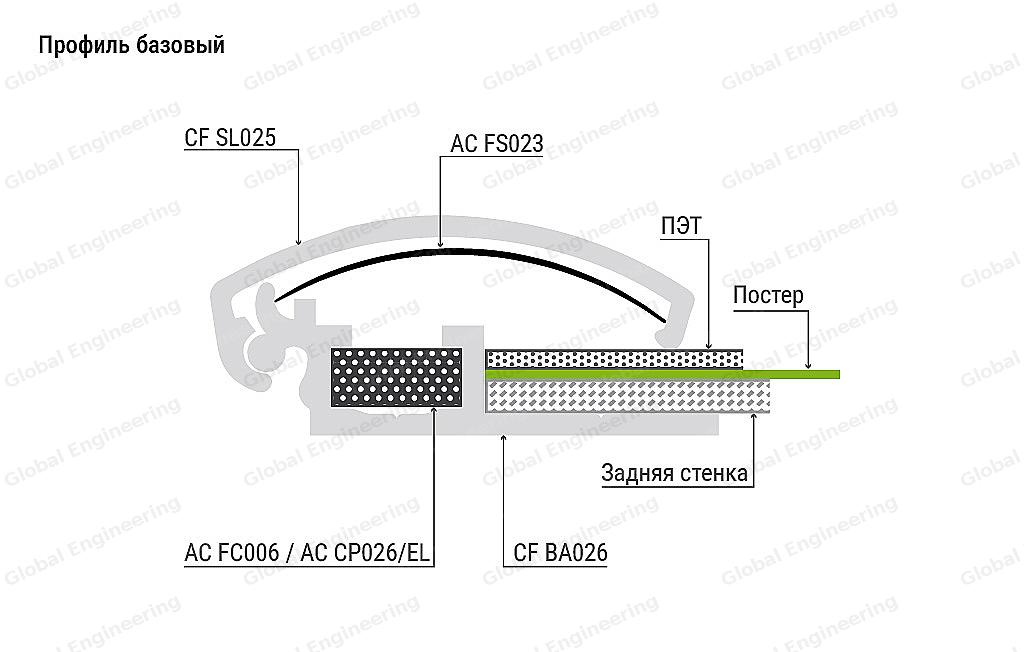

    Basic Profile can be of two types:

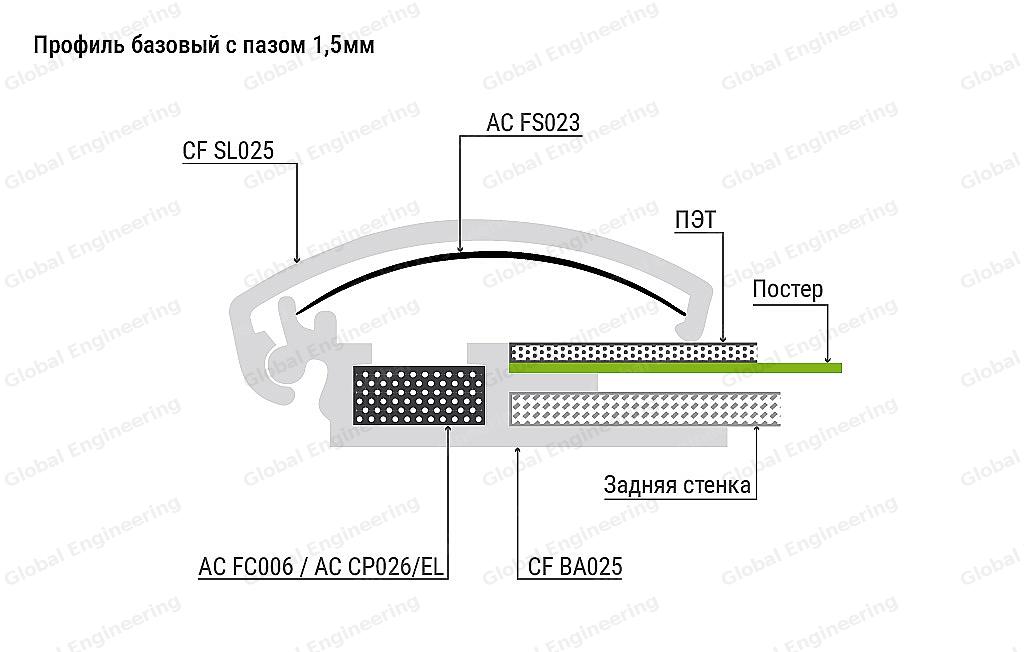

    1. Basic Profile with Shelf (Shelf under 1.5 mm thick Insert), Insert Total Thickness from 1.5 to 4 mm.
    2. Basic Profile without Shelf, Insert Total Thickness from 1 to 4 mm.

    Click Frame is assembled in two ways:

    1. Inner angles,

    Profile is cut at 45°.

    1. Outer decorative angles,

    Profile is cut at 90°.

    Component parts:

    ClicFrame 25 - frames with snap profile

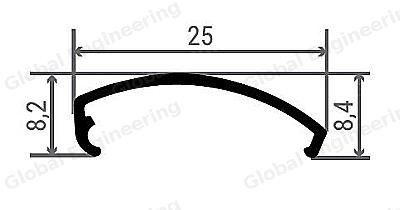

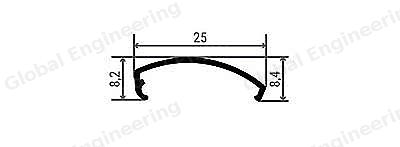

    CF SL025/1SM

    Profile Cover Click 25 mm SL anode, matt silver, 6.1 m, 0.6 kg

    CF SL025/1SM

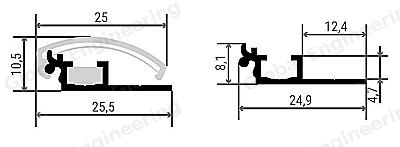

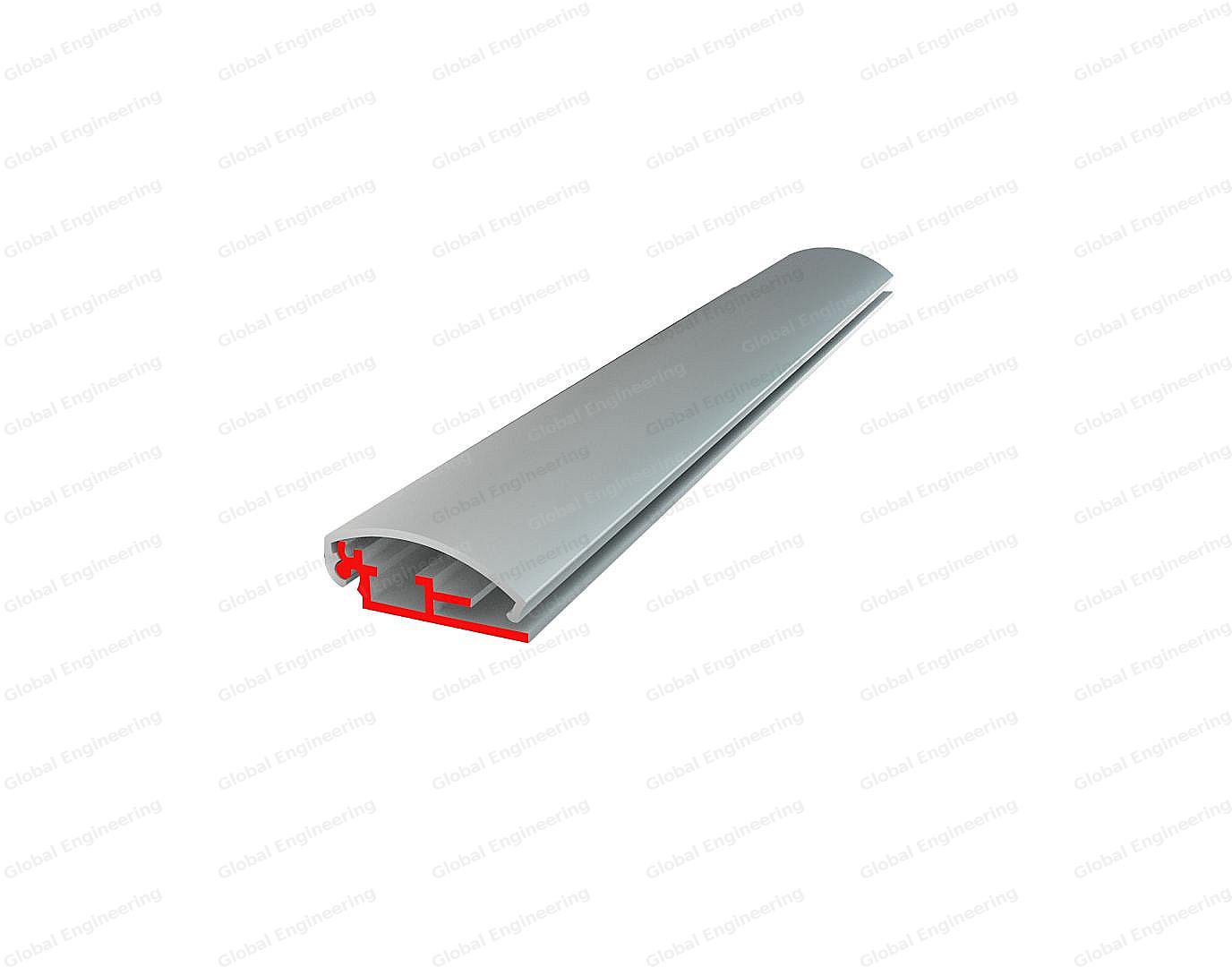

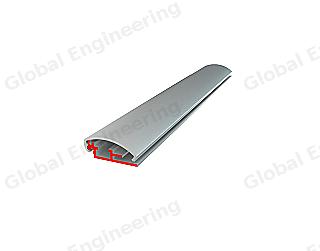

    CF BA025/1MF

    Profile Basic Click 25 mm Grooved 1.5 mm, unpainted 6.1 m, 0.83 kg

    CF BA025/1MF

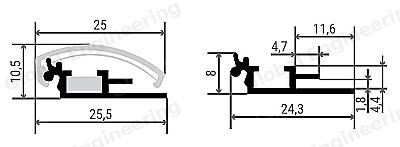

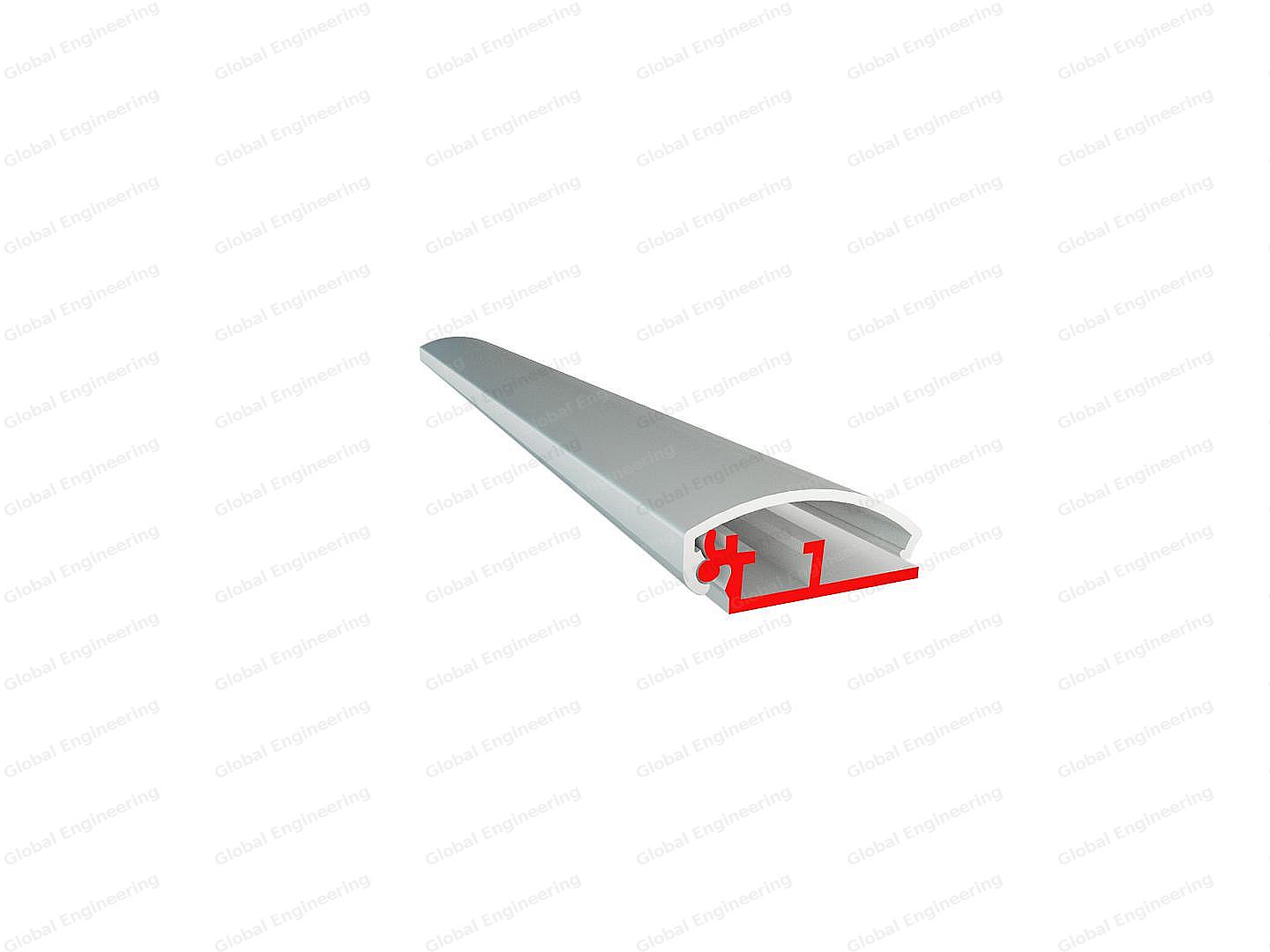

    CF BA026/1MF

    Profile Basic Click 26 mm, unpainted 6.1 m, 0.79 kg

    CF BA026/1MF

    Furniture:

    AC FC006

    AC FC006

    Click Angle 25 mm (6 mm) Inner Screw Steel

    AC FS023

    AC FS023

    Spring Click 25 mm (22x23 mm) Steel

    AC CP026/EL

    AC CP026/EL

    decorative corner connector click 26 mm EL, gray, 0,0166 kg

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC FC006 or AC CP026/EL AC FS023
    CF SL025/1SM + CF BA025/1MF or CF BA026/1MF 4 3-4 per meter, min 8

    Use:
