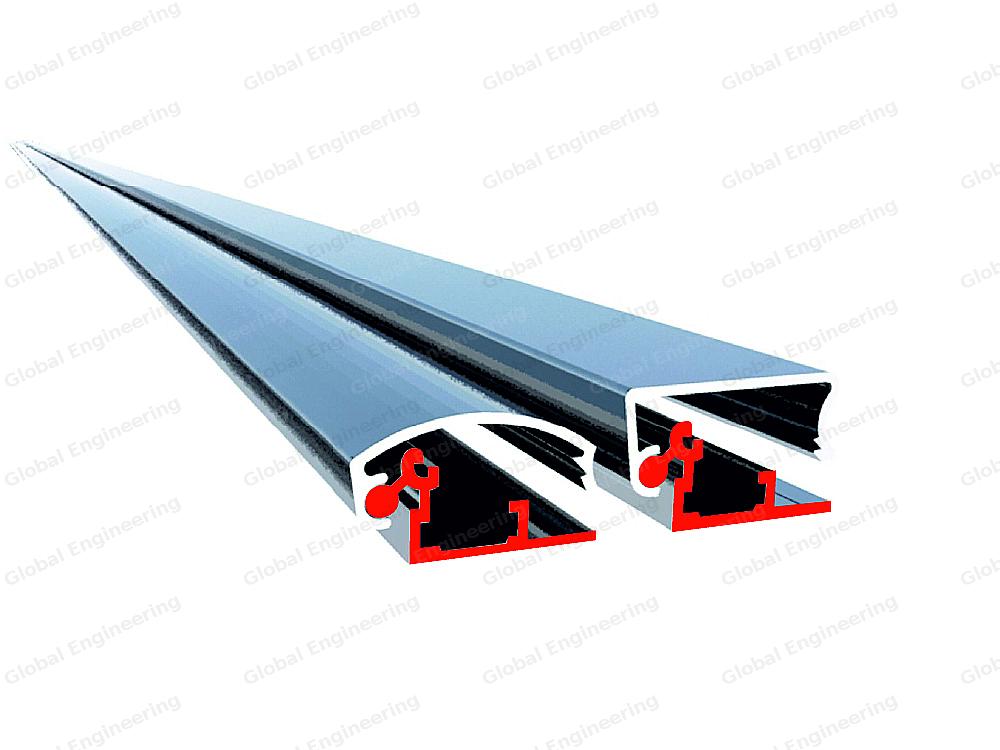

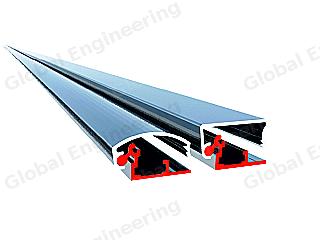

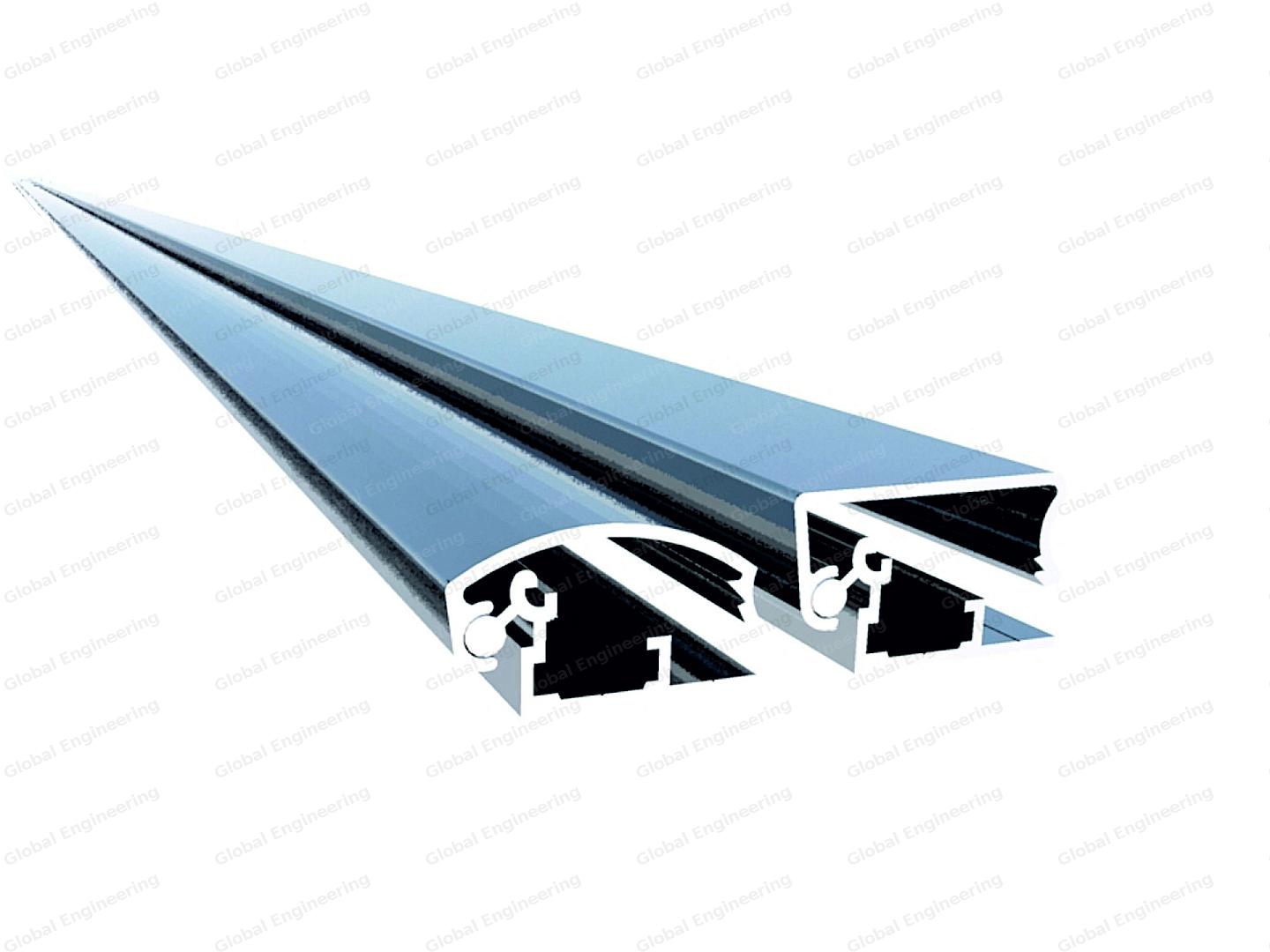

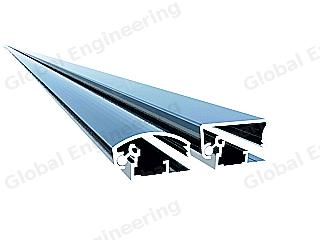

    ClicFrame 33 - frames with snap profile

    Profile System for making of One-Sided Non-Exposed Click Frame for frequent and rapid change of information.
    Covering Profile 33 mm wide can be of 2 types:

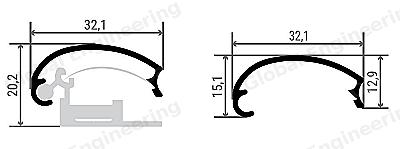

    1. Rounded (SL) cross-section.

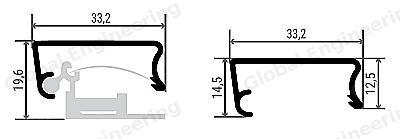

    2. Square (SQ) cross-section.
    Insert Thickness from 3 to 6 mm
    Click Frame is assembled in two ways:
    1. Inner angles, Profile is cut at 45°.
    2. Outer decorative angles, Profile is cut at 90°.

    Component parts:

    ClicFrame 33 - frames with snap profile ClicFrame 33 - frames with snap profile

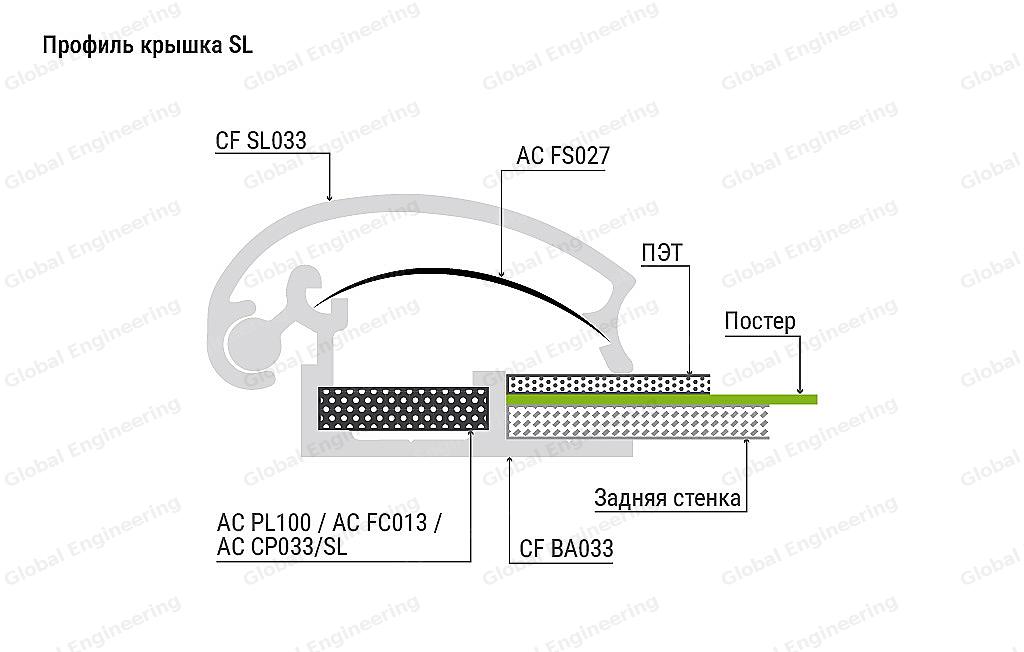

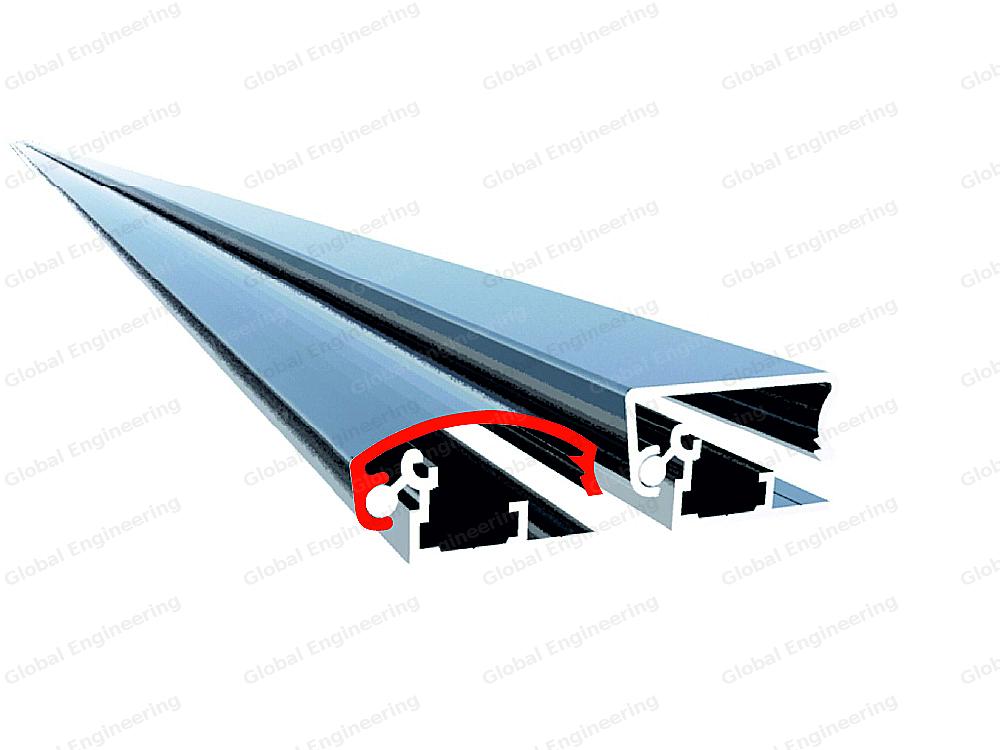

    CF SL033/1SM

    CF SL033/1SM

    профиль крышка клик SL, ЗЗ мм., анод., серебро матовое,6.1 м, 1.13 кг

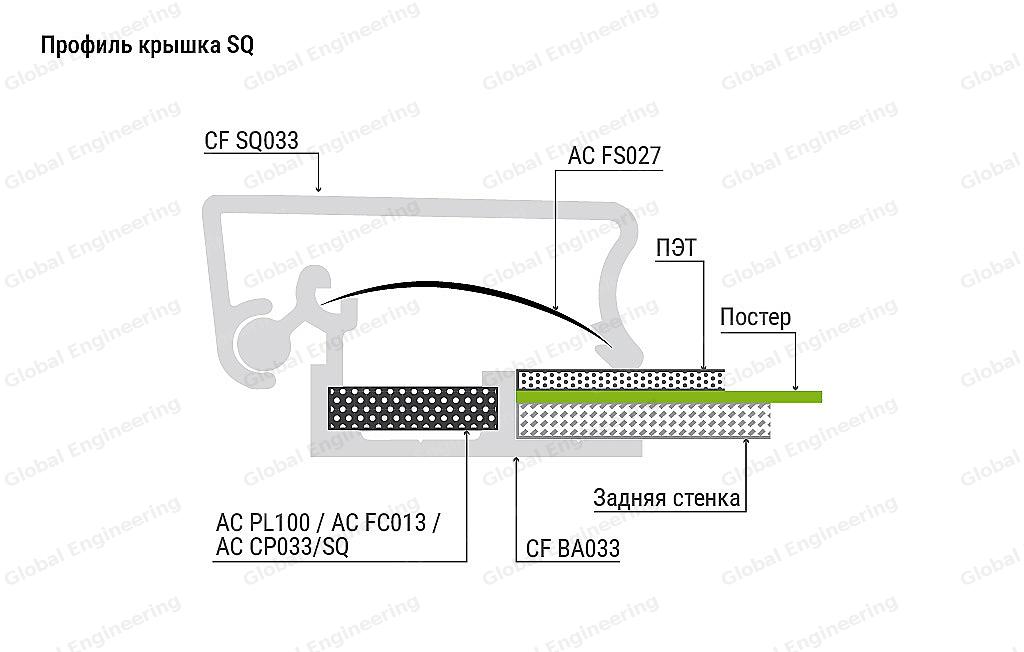

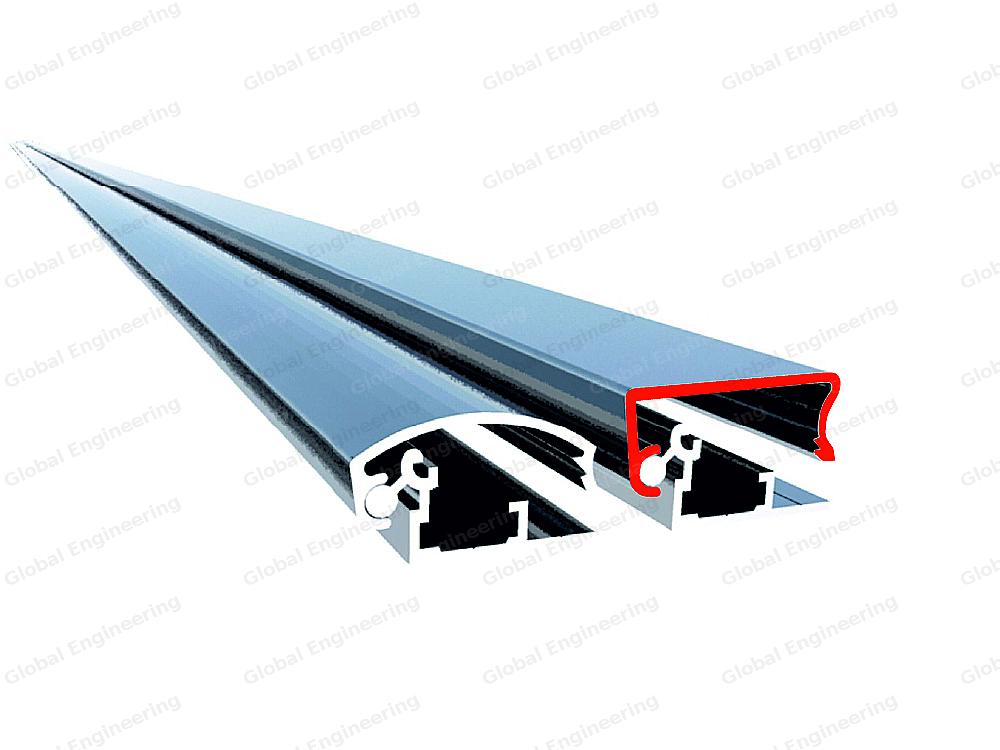

    CF SQ033/1SM

    CF SQ033/1SM

    Profile Cover Click 33 mm SQ anode, matt silver, 6.1 m, 1.38 kg

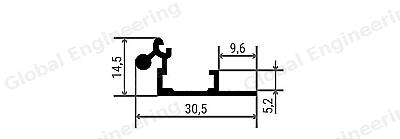

    CF BA033/1MF

    CF BA033/1MF

    Profile Basic Click 33 mm, unpainted 6.1 m, 1.36 kg

    Furniture:

    AC FC013

    AC FC013

    AC FS027

    AC FS027

    AC PL100

    AC PL100

    АС СР033/SL

    АС СР033/SL

    АС СР033/SQ

    АС СР033/SQ

    The number of hardware for one product item:

    Наименование профиля Наименование и количество фурнитуры
    AC FC013 или AC CP033/SL/SQ AC FS027
    CF SL033/1SM + CF SQ033/1SM или CF BA033/1MF 4 3-4 на метр, min 8
