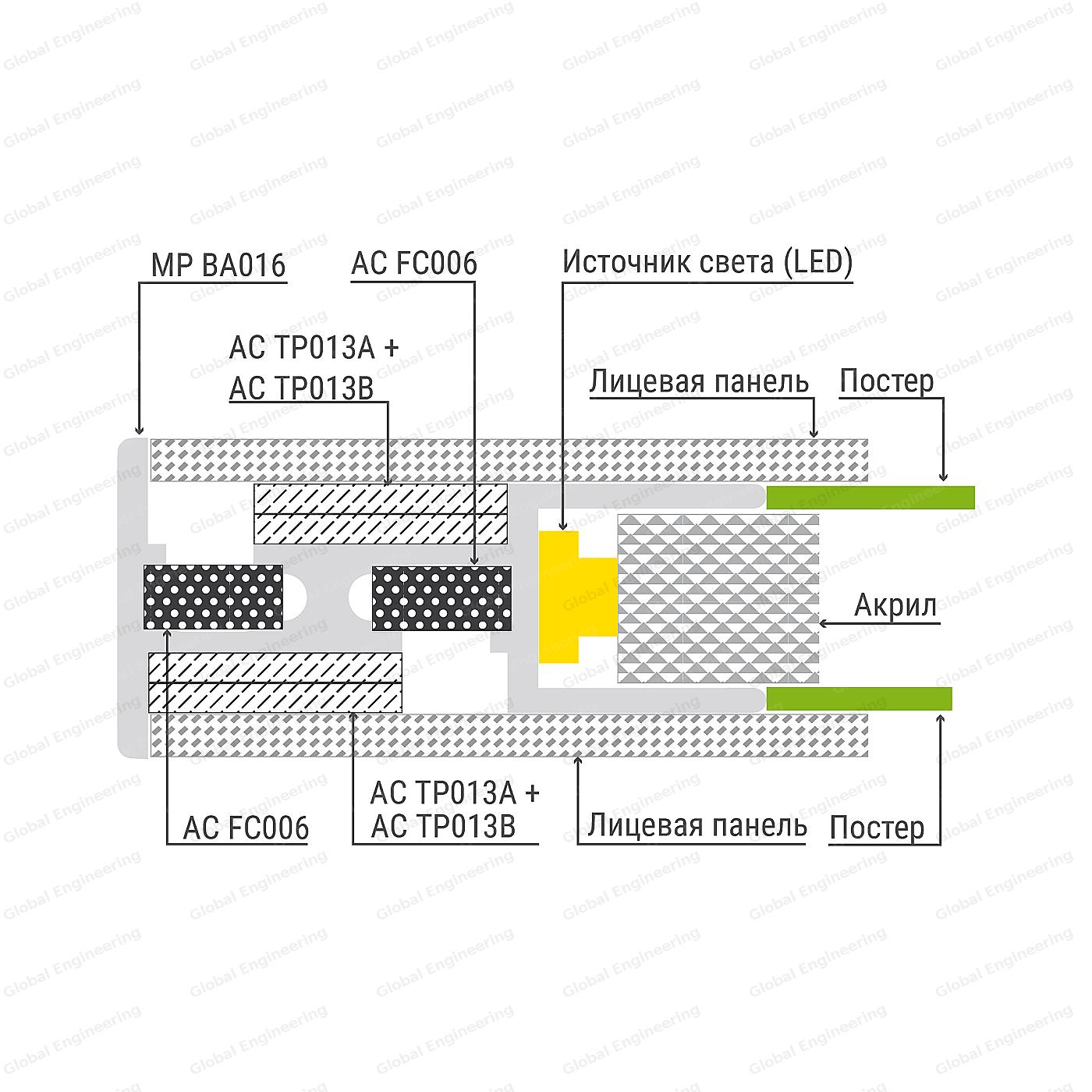

    MagneticPanel 16 - panels with magnetic connector and LED illumination

    Profile System is used for making of 16 mm deep Two-Sided Light Panel with Front Panel Magnetic Connector.
    Recommended format to A0.
    As the front panel is used 1.5-2 mm thick Transparent Plastic, which is fastened to the Panel with Magnetic Tapes (type A + type B) with TESA glue. Magnetic Tapes are closed all-around the front panel with “Rimming Strip”, the recommended width is 30 mm. “Rimming Strip” can be painted or made from Vinyl Film.
    To change Advertising Poster, the Front Panel is removed using Special Vacuum Cups, which ensures the anti-vandal design.
    Specialized Acrylic for background illumination or Acrylic with Matrix is used for uniform glowing inside the Light Panel:
    Acryl "Quinn Lumina Cast" 8 mm
    Acryl with Matrix 4 mm (2 Glass with Blocking Film in the middle).

    Component parts:

    MagneticPanel 16
    MP BA016/2SM

    MP BA016/2SM

    Profile Basic Panel Magnet 16 mm two-sided, anode, matt silver, 6.1 m, 1.8 kg

    Furniture:

    AC FC006

    AC FC006

    AC SU040

    AC SU040

    AC TP013A/TS

    AC TP013A/TS

    AC TP013B/TS

    AC TP013B/TS

    Кабель-ввод

    Кабель-ввод

    Удлинитель

    Удлинитель

    Коннектор питания

    Коннектор питания

    The number of hardware for one product item:

    Наименование профиля Наименование и количество фурнитуры
    AC FC006 AC SU040 AC TP013A/TS + AC TP013B/TS
    MF BA016/2SM 8 1 периметр x2
