    PanelLED 20 - panel with LED illumination

    Profile System for making of One / Two-Sided Light Panels with background illumination of 5 mm LED Tape. Specialized Acrylic for background illumination or Acrylic with Matrix is used for uniform glowing inside the Light Panel:
    For One-Sided Panel:
    Acryl "Quinn Lumina Cast" 6, 8 mm
    Acryl with Matrix 6 mm
    For Two-Sided Panel:
    Acryl "Quinn Lumina Cast" 6, 8 mm
    Acrylic with 4 mm Matrix (2 Glass with PVC 2 mm in the middle).

    Component parts:

    PanelLED 20 - panel with LED illumination

    PL BA020/2SM

    Profile Basic Panel 20 mm two-sided, anode, matt silver, 6.1 m, 1.59 kg

    PL BA020/2SM

    Furniture:

    AC SC506

    AC SC506

    Screw 5х6 mm Steel (PL20)

    Cable ring

    Cable ring

    Extension cord of power connector (female/male), 5,5x2,1 mm, black cable 150 sm

    Cable ring

    Cable ring

    KDF4 PVC 6/4 mm

    Power connector

    Power connector

    (female), 5,5x2,1 mm, black cable 30 sm, (male) 5,5x2,1 mm, black cable 30 sm

    AC AP010

    AC AP010

    Сorner panel (10mm) Alu (PL 20/48/58, TB 50) (AC AP010, 0,012 kg.)

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC AP010 AC SC506
    PL BA020/2SM 4 8

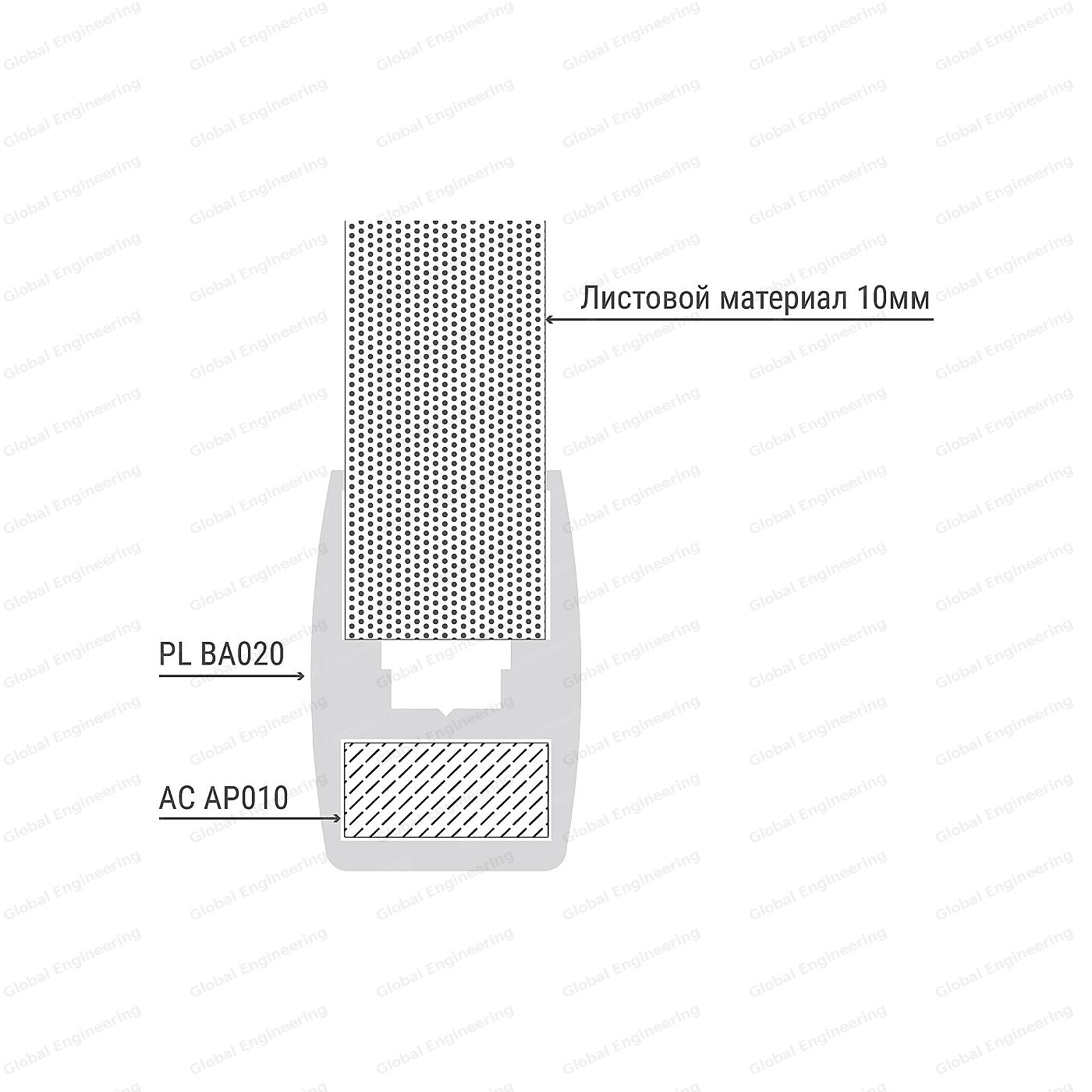

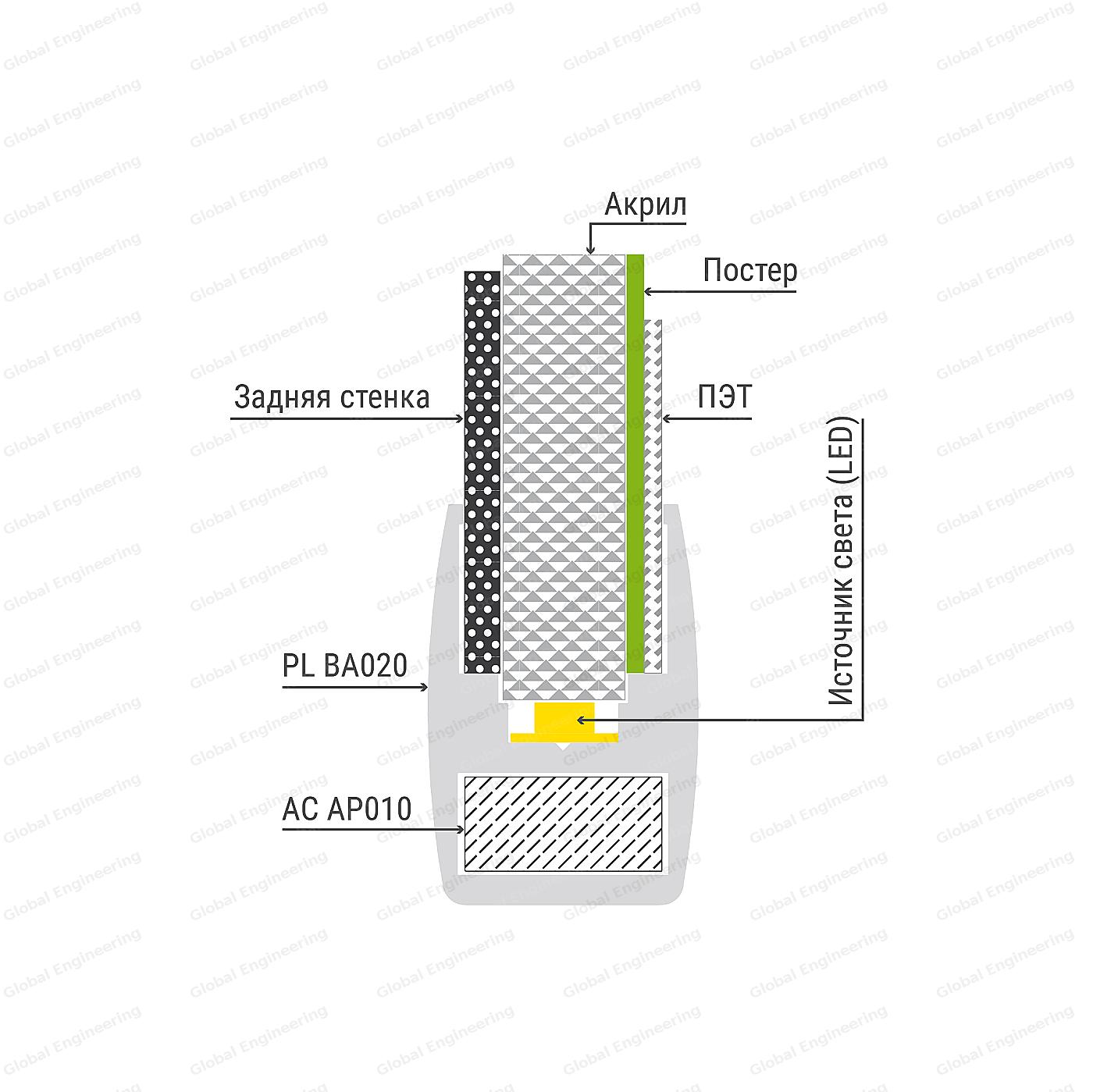

    Assembly scheme:

    PanelLED 20 - panel with LED illumination

    Use:
