    PanelLED 30 EL - panel with LED illumination

    Profile System for making of One / Two-Sided Light Panels with background illumination of 10 mm LED Tape.
    30 mm wide Covering Profile has rounded (EL) cross-section.
    Basic Profile can be of two types:
    1. Profile Basic one-sided;
    2. Profile Basic two-sided
    Specialized Acrylic for background illumination or Acrylic with Matrix is used for uniform glowing inside the Light Panel:
    For One-Sided Panel:
    Acryl "Quinn Lumina Cast" 6, 8, 10 mm
    Acryl with Matrix 4, 6 mm
    For Two-Sided Panel:
    Acryl "Quinn Lumina Cast" 10 mm
    Acrylic with 4 mm Matrix (2 Glass with PVC 2 mm in the middle).

    Component parts:

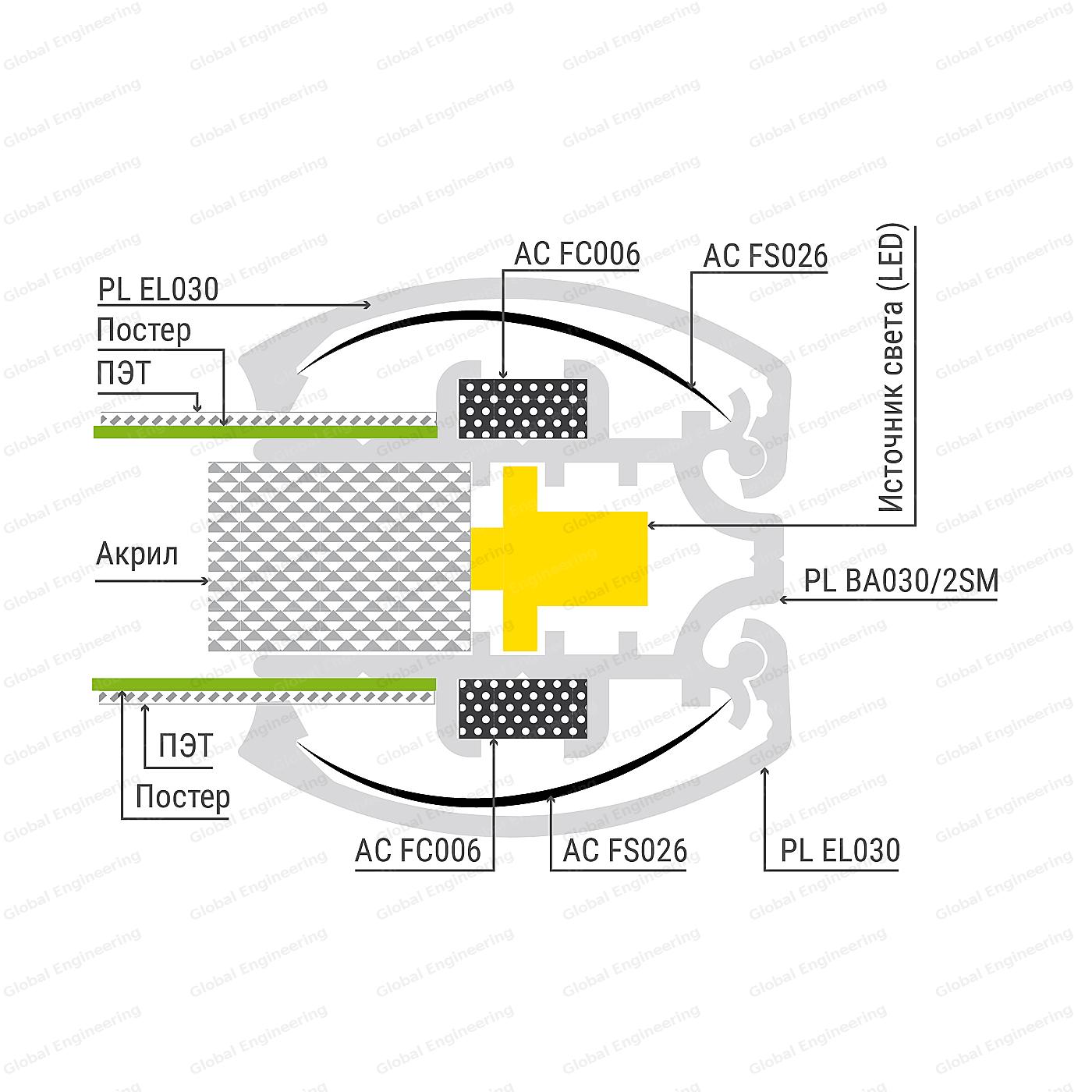

    PanelLED 30 EL - panel with LED illumination PanelLED 30 EL - panel with LED illumination
    PL EL030/1SM

    PL EL030/1SM

    Profile Cover Panel 30 mm EL anode, matt silver, 6.1 m, 0.85 kg

    PL BA030/1SM

    PL BA030/1SM

    Profile Basic Panel 30 mm one-sided, anode, matt silver, 6.1 m, 2.1 kg

    PL BA030/2SM

    PL BA030/2SM

    Profile Basic Panel 30 mm two-sided, anode, matt silver, 6.1 m, 2.26 kg

    Furniture:

    AC FC006

    AC FC006

    AC FS026

    AC FS026

    AC LP038

    AC LP038

    Cable ring

    Cable ring

    Strip

    Strip

    Cable ring

    Cable ring

    Power connector

    Power connector

    Nut M4

    Nut M4

    Screw loop M4

    Screw loop M4

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC FC006 AC AP038 AC FS026
    PL BA030/1SM + PL EL030/1SM or PL SQ030/1SM 4 min 2 3-4 per meter, min 8
    PL BA030/2SM + PL EL030/1SM or PL SQ030/1SM 8 - 3-4 per meter, min 16
