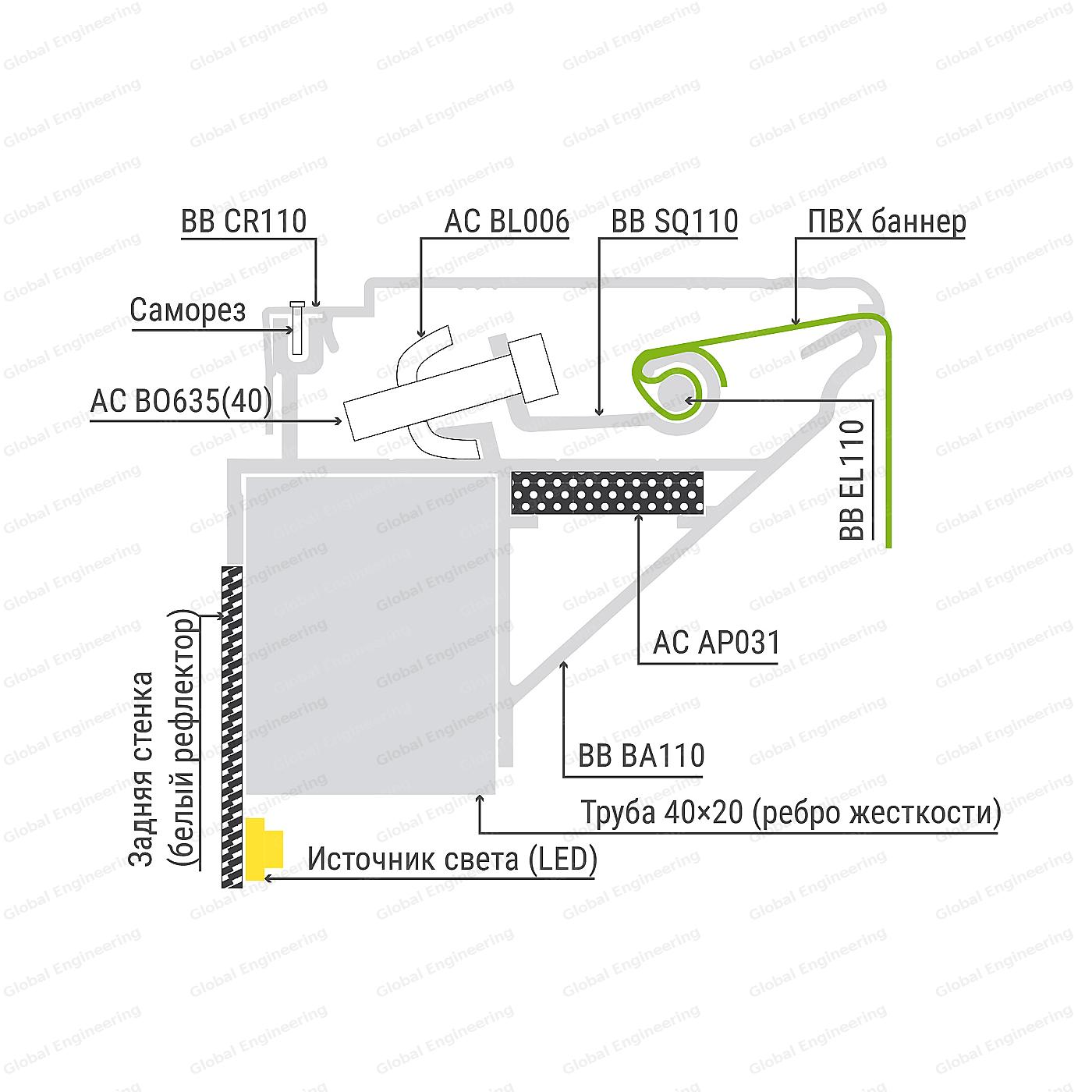

Profile System for making of One-Sided Light Box with tensioned Banner
Box Depth 110 mm
The system enables to make very large -size Advertising Structures, not limited to the Acrylic glass size.
Simple and reliable Banner mounting enables quick change Canvas without additional Firmware or Banner welding.
Pipe 40x20 mm is used as Stiffening Ribs inside the Box.
Box is illuminated on the rear wall with LED Modules.
Cover Box Banner 110 mm unpainted 6.1 m
Profile Basic Box Banner 110 mm, unpainted 6.1 m, 10.35 kg
Profile Tensioning Box Banner, unpainted 6.1 m, 0.8 kg
Profile is used to mountProfile is used to mount Advertising Structures. Advertising Structures.
Profile is used to strengthen Advertising Structures.
| Profile | Name and quantity of components | ||
|---|---|---|---|
| AC BL006 | AC BO635(40) | AC AP031 | |
| BB BA110/1MF + BB CR110/1MF | - | - | 4 |
| BB SQ110/1MF + BB EL110/1MF | 7 on whip (2м) | 7 on whip (2м) | - |
