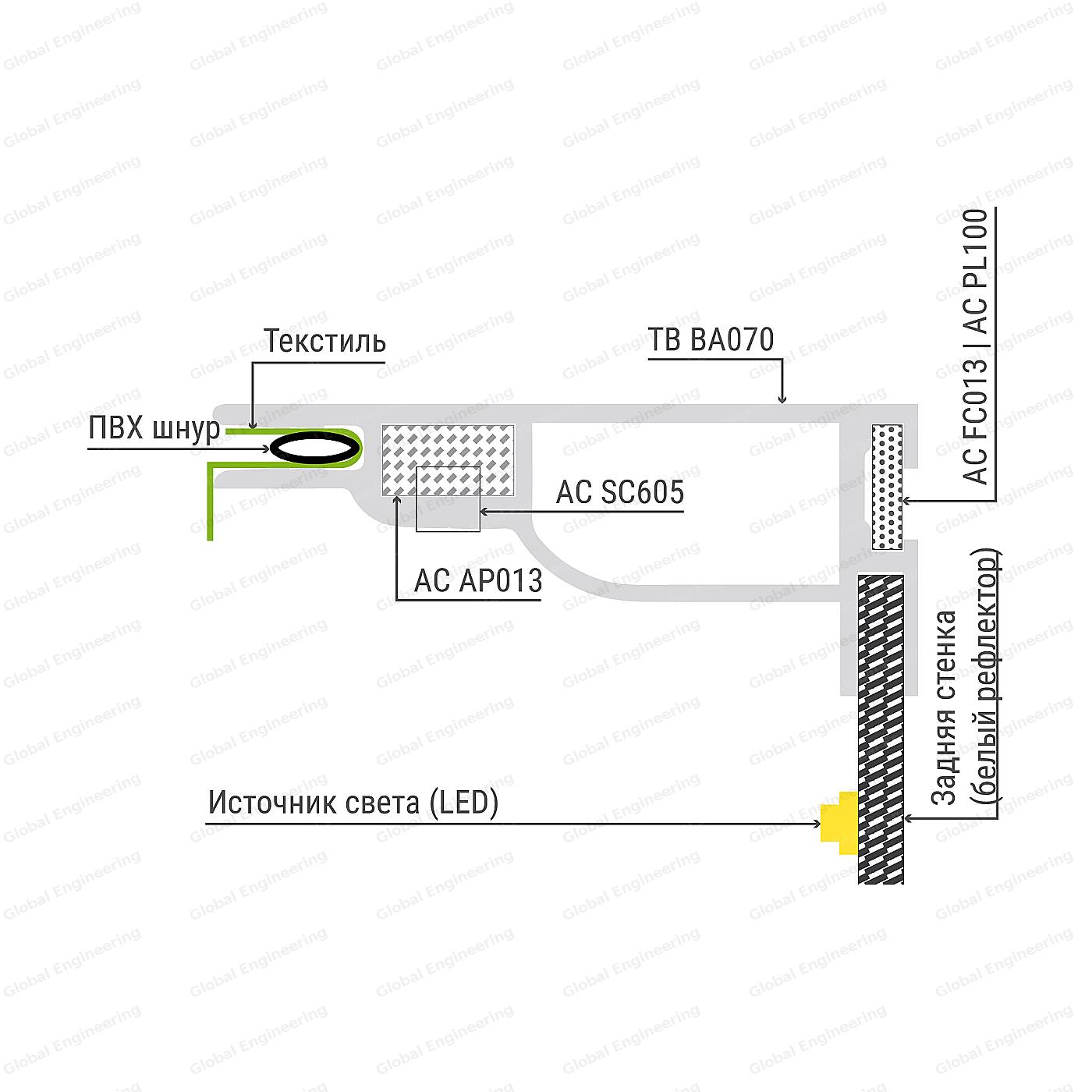

    TexBox 70 - box with textile

    Profile System for making of One-Sided Light Box with tensioned Textile to 1000 mkm thick. Box Depth 70 mm Box is illuminated all-around with LED Tape. Special Profile Bracket (BF MO048/1MF) is used to mount one-sided Box (with rigid wall) to the Wall.

    Textiles are mounted in Frame using PVC Strips or PVC Cord. PVC Strip is sewn (glued) according to the Scheme on the Textile reverse side. PVC Cord is pulled into the Groove with Special Roller from the Textile front side.

    Special Docking Plate is used to build the Profile lengthwise.

    Steel Base (250*300 or 200*500 mm) is used to mount the Box on the Floor. There are plastic covers of different colors for the Base  250*300

    Component parts:

    TexBox 70 - box with textile

    TB BA070/1SM

    basic profile 70 mm 1-sided, silver anod matt 6,1 m, 6,34 kg

    TB BA070/1SM

    BF MO048/1MF

    Profile Bracket for Box Suspension, unpainted 6.1 m, 1.8 kg

    BF MO048/1MF

    Furniture:

    AC FC013

    AC FC013

    AC AP013

    AC AP013

    AC SC605

    AC SC605

    AC TP015

    AC TP015

    AC CD005

    AC CD005

    AC RO111

    AC RO111

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC FC013 AC AP013 AC SC605 AC CD005 или AC TP015
    TB BA070/1SM 4 4 8

    perimeter

    Scheme of canvas cutting:

    Scheme of canvas cutting for TexBox 70 Armed
