Profile System for making of One-Sided Non-Exposed Frame with tensioned Textile to 1000 mkm thick.
Frame Depth 16 mm Used for making of Small-Size Frames.

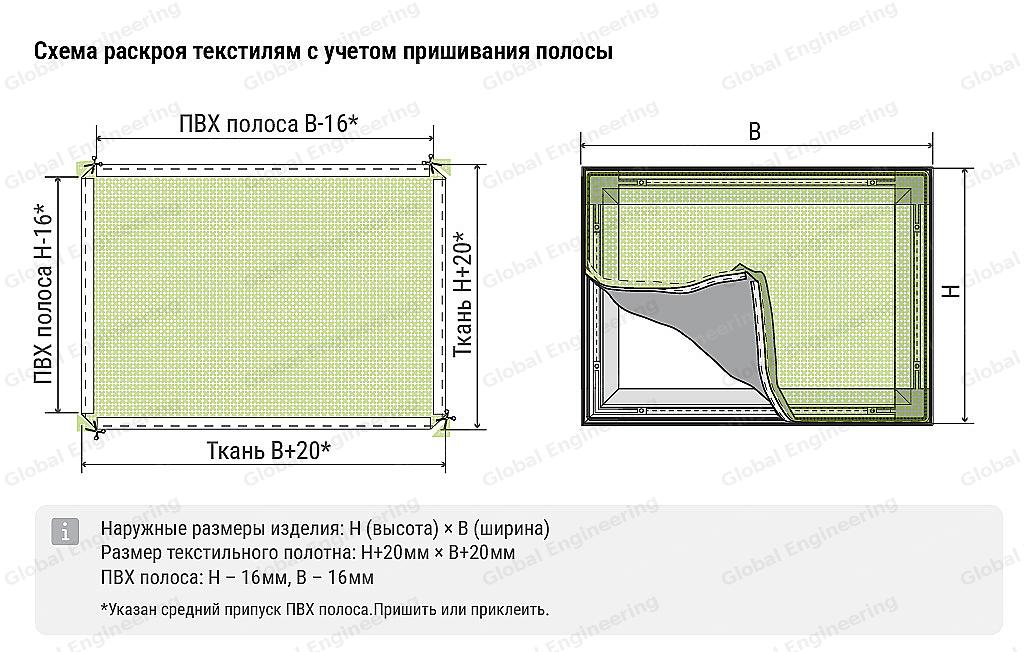

Textiles are mounted in Frame using PVC Strips or PVC Cord. PVC Strip is sewn (glued) according to the Scheme on the Textile reverse side. PVC Cord is pulled into the Groove with Special Roller from the Textile front sid.
Special Docking Plate is used to build the Profile lengthwise.
Profile Basic Textile 16 mm one-sided LITE, anode, matt silver, 6.1 m, 1.47 kg
| Profile | Name and quantity of components | |||
|---|---|---|---|---|
| AC FC013 | AC AP011 | FC LP038 | AC CD005 or AC TP015 | |
| TF BA016LT/1SM | 4 | - | - | Perimeter |
| TF BA022/1SM | 8 | 4 | min 2 | Perimeter |
| TF BA045/2SM | 8 | 4 | - | Perimeter х2 |
