    TexFrame 45 NEW

    Profile System for making of One-Sided Non-Exposed Frame with tensioned Textile to 1000 mkm thick.

    Frame Depth 45 mm Used for making of Small-Size Frames and Interzonal Partitions.

    Profile Inpost is used to strengthen the structure inside the Frame.

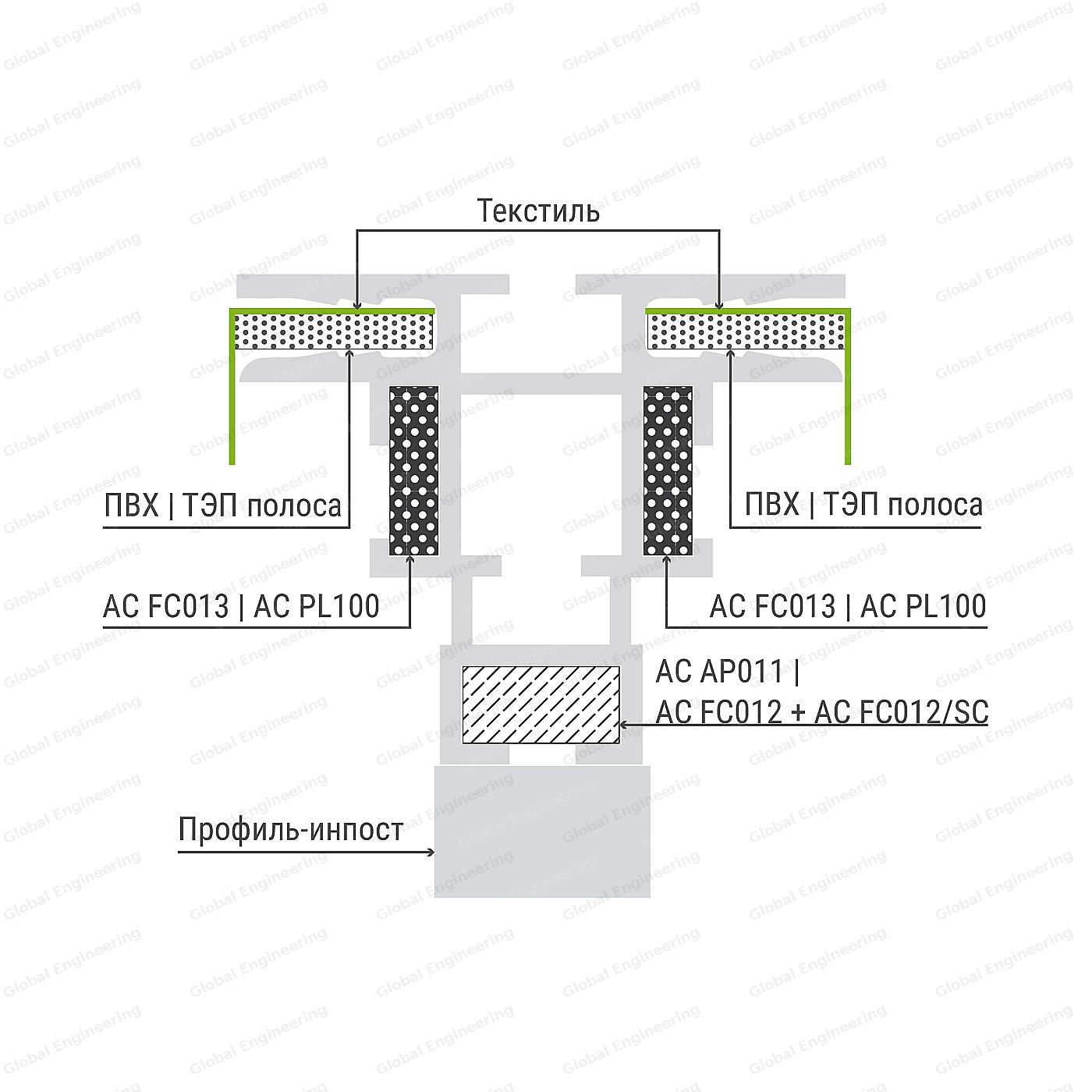

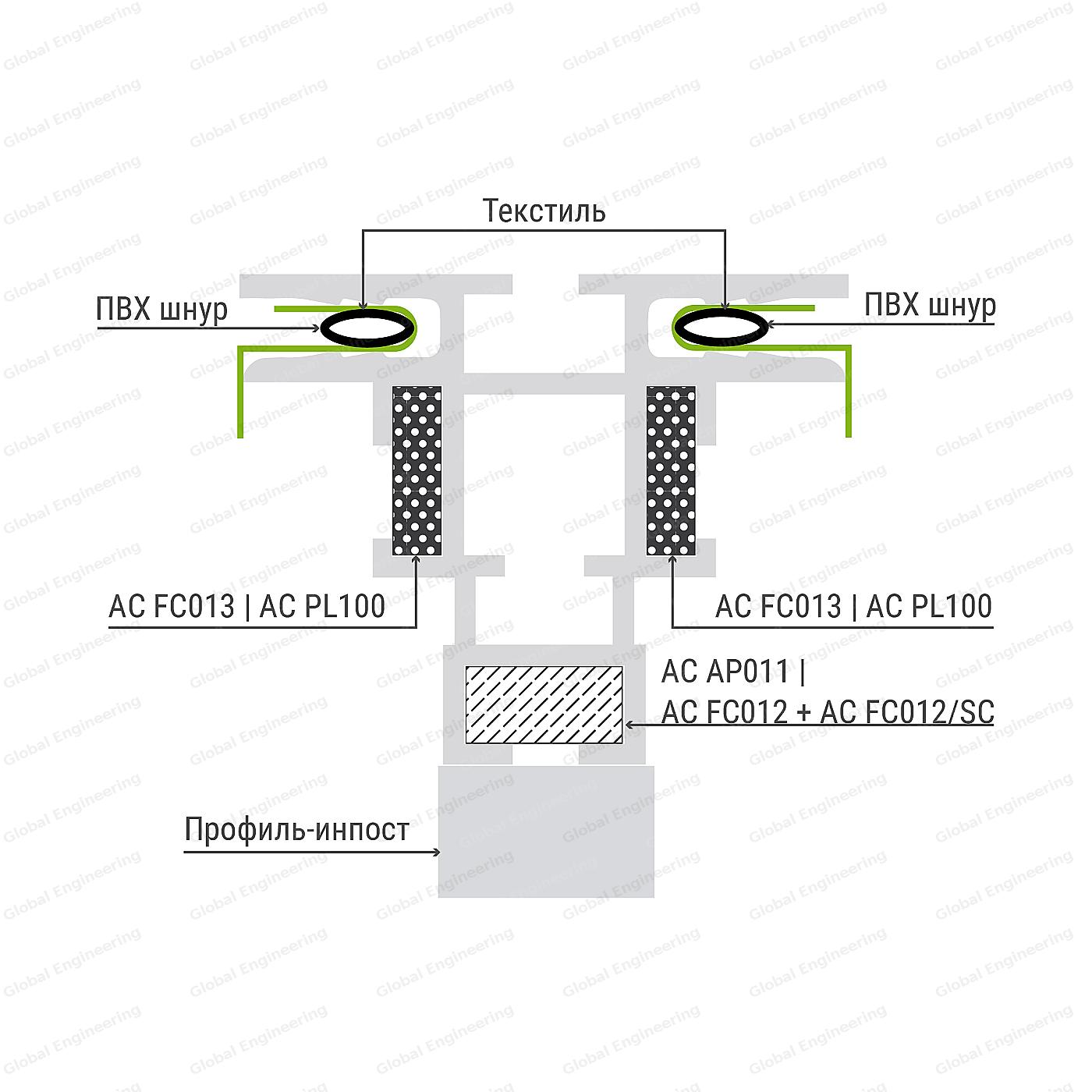

    Textiles are mounted in Frame using PVC Strips or PVC Cord. PVC Strip is sewn (glued) according to the Scheme on the Textile reverse side. PVC Cord is pulled into the Groove with Special Roller from the Textile front sid.

    Special Docking Plates are used to build the Profile lengthwise. Base is used to mount the Frame on the Floor.

    Component parts:

    PR TU416

    Profile is used to strengthen Advertising Structures in Systems TexFrame 22/45, TexBox 100/180.

    PR TU416

    TF BA045/2SM

    Profile Basic Textile 45 mm two-sided NEW, anode, matt silver 6.1 m, 5.47 kg

    TF BA045/2SM

    Furniture:

    AC FC013

    AC FC013

    angle bar textile (13 mm) internal steel screw

    AC AP011

    AC AP011

    Angle Panel (11 mm) Alu (PL 20/48/58, TF 22/45)

    AC CD005

    AC CD005

    Textile Strip (5 mm) PVC, lm

    AC TP015

    AC TP015

    textile pvc strip (15 mm)

    AC RO111

    AC RO111

    Textile Roller

    AC PL100

    AC PL100

    Textile Plate 100x12mm Inner Screw Steel (BF No.5, CF33)

    Decorative cover for base

    250x300x6
    gloss (light blue, blue, green, red, black) 0,224 kg
    sand (gray), 0,149 kg

    Base, metal

    6 mm, grey, 200*500, 4,45 kg
    6 mm, grey, 250*250, 2,815 kg
    6 mm, grey, 250*300, 3,338 kg

    AC FC012

    AC FC012

    Angle Inpost 12 mm Steel without Screws, 0.018 kg

    AC FC012/SC

    AC FC012/SC

    Angle Inpost 12 mm Steel with Screws, 0.019 kg

    AC TPЕ015

    AC TPЕ015

    TEP strip textile (15mm)

    The number of hardware for one product item:

    Profile Name and quantity of components
    AC FC013 AC AP010 FC LP038 AC CD005 or AC TP015
    TF BA016/1SM 4 - - Perimeter
    TF BA022/1SM 4 4 min 2 Perimeter
    TF BA045/2SM 8 4 - Perimeter х2

    Scheme of canvas cutting:

    Scheme of canvas cutting for TexFrame 45 NEW
